Reduction Driven Gear: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the transmission assembly from vehicle. < Ref. to , REMOVAL , Automatic Transmission Assembly. >
  2. Remove the rear vehicle speed sensor, and then separate the extension case from transmission case. < Ref. to , REMOVAL , Extension Case. >
  3. Set the select lever to "P" range.
  4. Remove the caulking part, and then remove the lock nut.

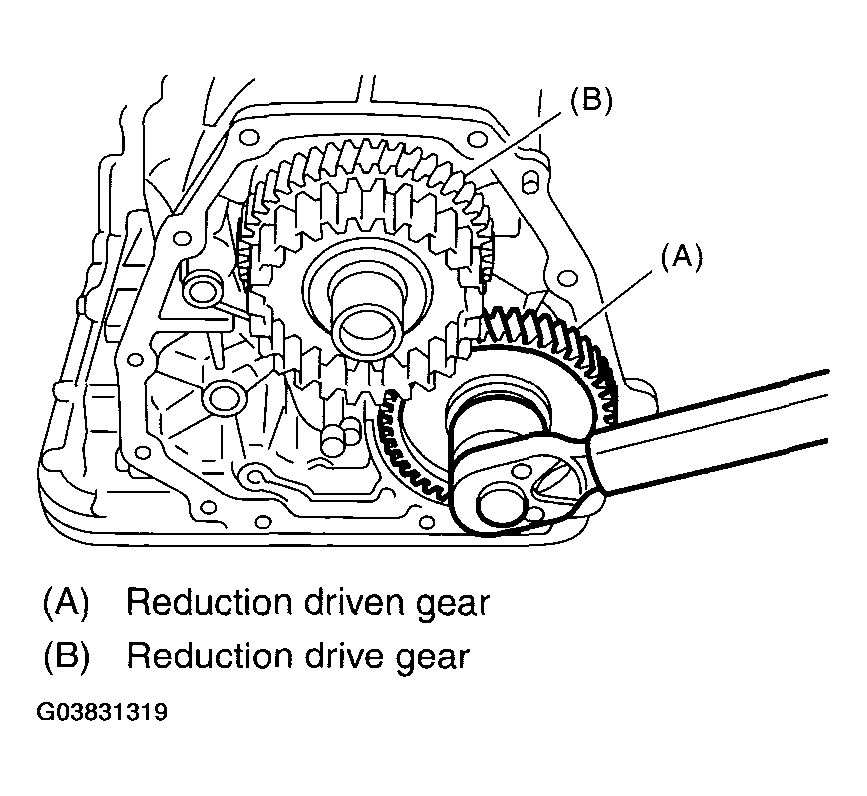

    Fig 1: Removing Lock Nut
    G03831319Courtesy of SUBARU OF AMERICA, INC.
  5. Using the ST1 and ST2, extract the reduction driven gear.

    ST1 499737000 PULLER

    ST2 899524100 PULLER SET

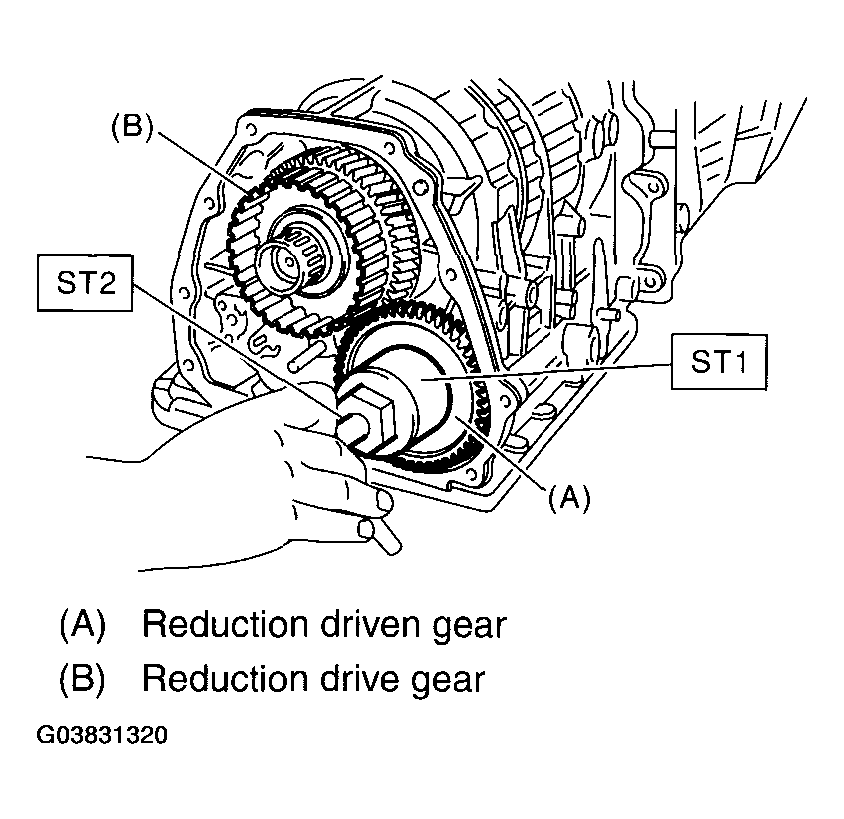

    Fig 2: Using ST1 And ST2
    G03831320Courtesy of SUBARU OF AMERICA, INC.
