Air Breather Hose: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the air intake chamber.

    < Ref. to REMOVAL , Air Intake Chamber. >

  2. Disconnect the air breather hose.

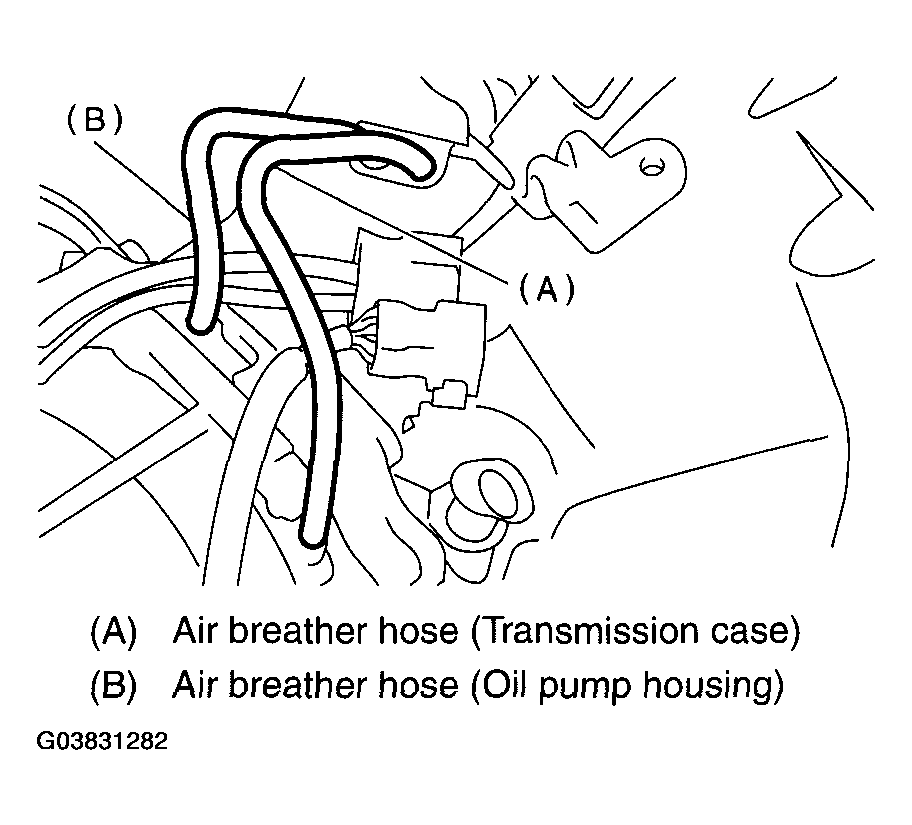

    Fig 1: Disconnecting Air Breather Hose
    G03831282Courtesy of SUBARU OF AMERICA, INC.
