Reduction Drive Gear: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the transmission assembly from vehicle. < Ref. to , REMOVAL , Automatic Transmission Assembly. >
  2. Remove the rear vehicle speed sensor, and then separate the extension case from transmission case. < Ref. to , REMOVAL , Extension Case. >
  3. Remove the reduction driven gear. < Ref. to , REMOVAL , Reduction Driven Gear. >
  4. Using the ST, extract the reduction drive gear.

    ST1 499737100 PULLER

    ST2 899524100 PULLER SET

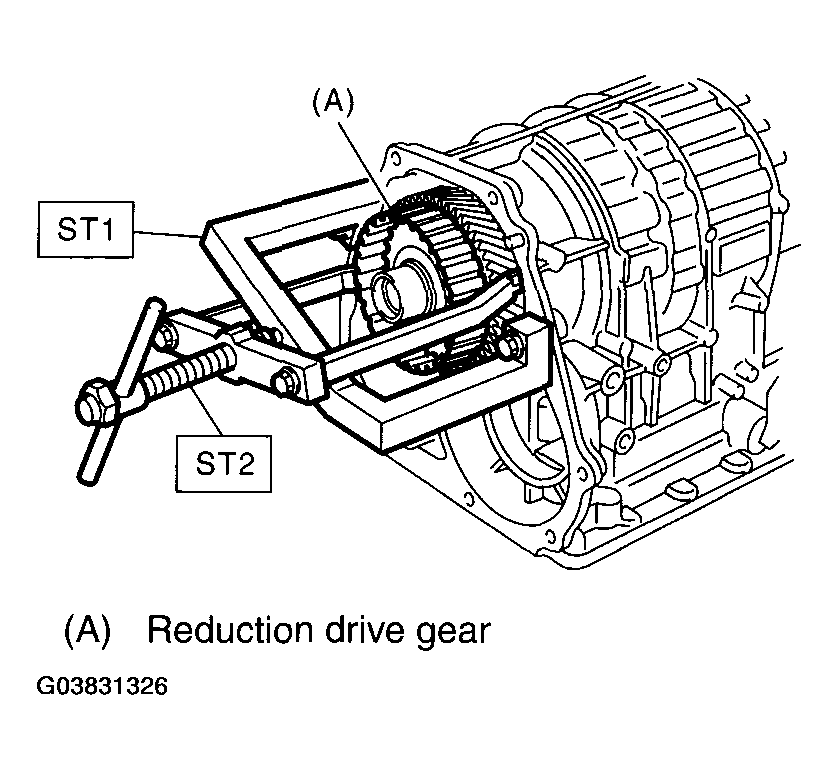

    Fig 1: Removing Reduction Drive Gear Using Special Tools
    G03831326Courtesy of SUBARU OF AMERICA, INC.
