Oil Charge Pipe: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the air intake chamber.

    < Ref. to REMOVAL , Air Intake Chamber. >

  2. Remove the oil charge pipe, and then remove the O-ring from flange side.

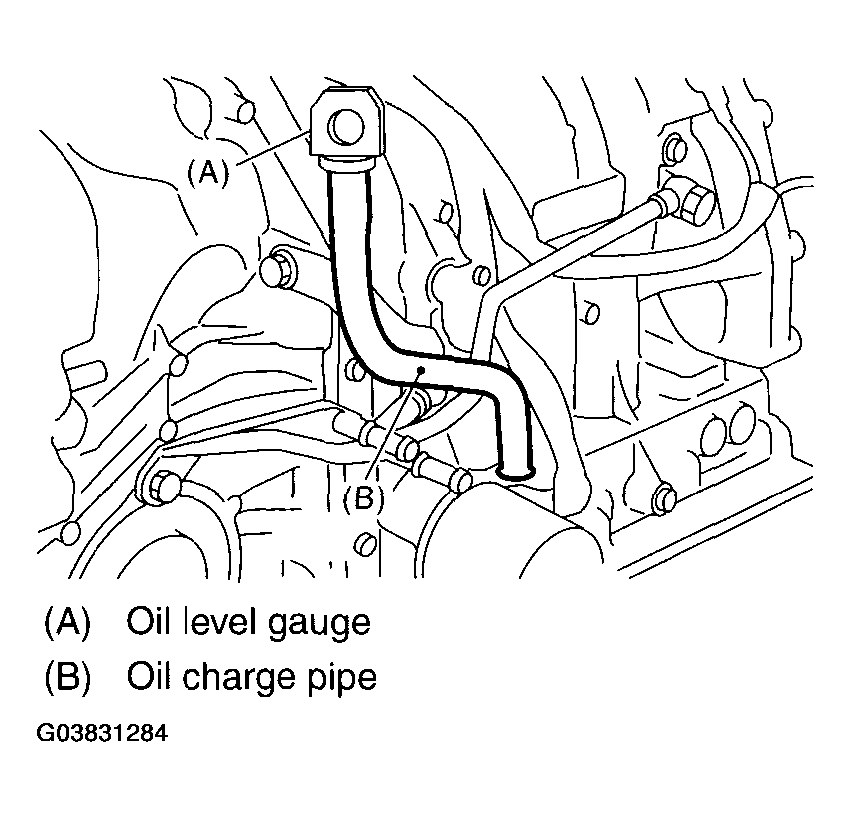

    Fig 1: Removing Oil Charge Pipe
    G03831284Courtesy of SUBARU OF AMERICA, INC.
