Adjust Liftgate - AR72.20-P-0002SRA

MODEL 453.3

G12096261
G12096262
  Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. No parts of the body or limbs should be within the operating area when the components are moving. AS00.00-Z-0011-01A
INSPECT Check
1 Check whether upper liftgate (1) and lower liftgate (8) can be closed easily and the gap dimensions are with the tolerance range   AR60.00-P-0700-01SR
    MODEL 453.3 *BE60.00-P-1024-01CA
    MODEL 453.3 *BE60.00-P-1023-01CA
    MODEL 453.3 *BE60.00-P-1022-01CA
    MODEL 453.3 *BE60.00-P-1021-01CA
    SPECIAL TOOL Feeler gauge Figure
REMOVING Remove

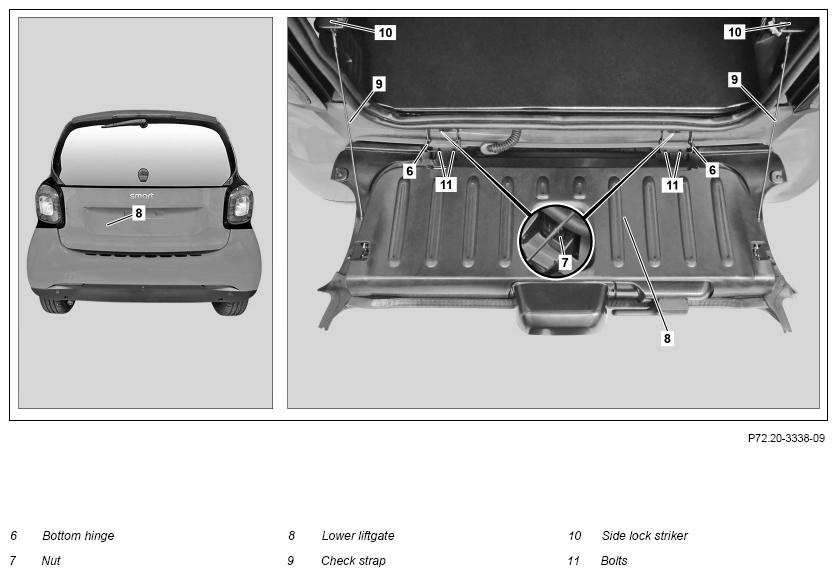

2 Remove check straps (9) from side lock striker (10) To adjust lower liftgate (8). AR72.20-P-2571SRA
3 Remove side lock striker (10) To adjust lower liftgate (8).
4 Lower headliner To adjust upper liftgate (1). AR68.30-P-4300SRA
5 Remove rear spoiler To adjust upper liftgate (1). AR72.20-P-4000SRA
6 Remove upper lock striker (5) To adjust upper liftgate (1).
7 Remove both gas-filled struts from upper liftgate (1) To adjust upper liftgate (1).
IMPORTANT Helper required to hold upper liftgate (1).		 AR72.20-P-2832SR
  Adjusting lower liftgate
8 Loosen bolts (11) from hinges (6) IMPORTANT It should be possible to move the lower liftgate (8).
9 Align lower liftgate (8) and tighten bolts (11)   AR60.00-P-0700-01SR
    TORQUE SPECIFICATION Screw/bolt/nut, liftgate hinge to liftgate *BA72.20-P-1002-03SR
    SPECIAL TOOL Feeler gauge Figure
10 Loosen nuts (7) on hinges (6) IMPORTANT It should be possible to move the lower liftgate (8).
11 Align lower liftgate (8) and tighten nuts (7)   AR60.00-P-0700-01SR
    TORQUE SPECIFICATION Screw/bolt/nut, liftgate hinge to rear center section *BA72.20-P-1005-03SR
    SPECIAL TOOL Feeler gauge Figure
  Adjusting upper liftgate

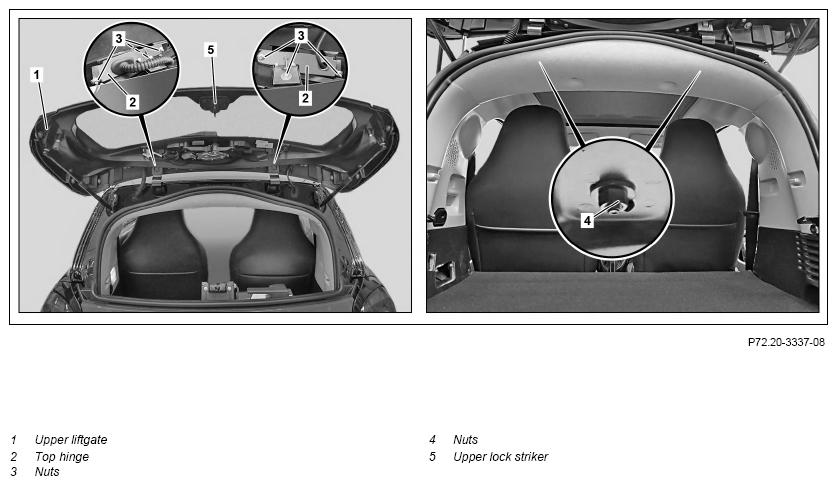

12 Loosen nuts (3) on hinges (2) IMPORTANT It should be possible to move the upper liftgate (1).
13 Align upper liftgate (1) and tighten nuts (3) IMPORTANT Helper required to hold upper liftgate (1). AR60.00-P-0700-01SR
    TORQUE SPECIFICATION Screw/bolt/nut, liftgate hinge to liftgate *BA72.20-P-1002-03SR
    SPECIAL TOOL Feeler gauge Figure
14 Loosen nuts (4) on hinges (2) IMPORTANT It should be possible to move the upper liftgate (1).
15 Align upper liftgate (1) and tighten nuts (4) IMPORTANT Helper required to hold upper liftgate (1). AR60.00-P-0700-01SR
    TORQUE SPECIFICATION Screw/bolt/nut, liftgate hinge to roof frame *BA72.20-P-1001-03SR
    SPECIAL TOOL Feeler gauge Figure
INSPECT Check
16 Check whether upper liftgate (1) and lower liftgate (8) can be closed easily and the gap dimensions are with the tolerance range IMPORTANT If necessary, repeat adjustment.
SPECIAL TOOL Feeler gauge		 Figure
INSTALLING Install
17 Install side lock strikers (10)
18 Remove check straps (9) from side lock strikers (10)   AR72.20-P-2571SRA
  Adjust
19 Adjust transition between lower liftgate (8) and edges to taillamp covers and B-pillars by moving side lock stroker (10) IMPORTANT The transition must be flush.
INSTALLING Install
20 Install upper lock striker (5) TORQUE SPECIFICATION Screw/bolt, lock striker to liftgate window *BA72.20-P-1006-03SR
  Adjust
21 Adjust transition between upper liftgate (1) and lower liftgate (8) by moving lock striker (5) IMPORTANT The transition must be flush.
INSTALLING Install
22 Install rear spoiler   AR72.20-P-4000SRA
23 Install headliner   AR68.30-P-4300SRA
24 Install both gas-filled struts on upper liftgate (1)   AR72.20-P-2832SR
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number Designation MODEL 453.3
BE60.00-P-1021-01CA Side spoiler to sidewall paneling Dimension "Q" mm 4 (±1, 5)
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number Designation MODEL 453.3
BE60.00-P-1022-01CA Rear window to liftgate Dimension "S" mm 4, 5 (1, 5)
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number Designation MODEL 453.3
BE60.00-P-1023-01CA Taillamp panel to liftgate Dimension "T" mm 4, 5 (1, 5)
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number Designation MODEL 453.3
BE60.00-P-1024-01CA Bumper to lower liftgate Dimension "U" mm 5 (±2)
LIFTGATE

Number Designation MODEL 453.3
BA72.20-P-1001-03SR Screw/bolt/nut, liftgate hinge to roof frame Nm 21
LIFTGATE

Number Designation MODEL 453.3
BA72.20-P-1002-03SR Screw/bolt/nut, liftgate hinge to liftgate Nm 21
LIFTGATE

Number Designation MODEL 453.3
BA72.20-P-1005-03SR Screw/bolt/nut, liftgate hinge to rear center section Nm 21
LIFTGATE

Number Designation MODEL 453.3
BA72.20-P-1006-03SR Screw/bolt, lock striker to liftgate window Nm 12
Fig 1: Identifying Feeler Gauge (129 589 03 21 00)
