Gap Dimensions On Hoods, Doors And Lids - AR60.00-P-0700-01SR
MODEL 453.0/3/4
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS
| Number | Designation | Model 453.4 | Model 453.0 | ||
|---|---|---|---|---|---|
| BE60.00-P-1002-01CA | Bumper to maintenance flap | Dimension "A" | mm | 3 (± 2) | 3 (± 2) |
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS
| Number | Designation | Model 453.3 | ||
|---|---|---|---|---|
| BE60.00-P-1002-01CA | Bumper to maintenance flap | Dimension "A" | mm | 3 (± 2) |
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS
| Number | Designation | Model 453.4 | Model 453.3 | ||
|---|---|---|---|---|---|
| BE60.00-P-1003-01CA | Bumper to lower maintenance flap on side | Dimension "B" | mm | 3 (± 2) | 3 (± 2) |
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS
| Number | Designation | Model 453.4 | Model 453.0 | ||
|---|---|---|---|---|---|
| BE60.00-P-1004-01CA | Bumper to headlamp | Dimension "C" | mm | 1, 5 (± 1) | 1, 5 (± 1) |
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS
| Number | Designation | Model 453.3 | ||
|---|---|---|---|---|
| BE60.00-P-1004-01CA | Bumper to headlamp | Dimension "C" | mm | 1, 5 (± 1) |
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS
| Number | Designation | Model 453.4 | Model 453.0 | ||
|---|---|---|---|---|---|
| BE60.00-P-1005-01CA | Bumper to fender | Dimension "D" | mm | 0 (± 0, 5) | 0 (± 0, 5) |
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS
| Number | Designation | Model 453.3 | ||
|---|---|---|---|---|
| BE60.00-P-1005-01CA | Bumper to fender | Dimension "D" | mm | 0 (± 0, 5) |
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS
| Number | Designation | Model 453.4 | Model 453.0 | ||
|---|---|---|---|---|---|
| BE60.00-P-1006-01CA | Headlamp to maintenance flap | Dimension "E" | mm | 3 (± 2) | 3 (± 2) |
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS
| Number | Designation | Model 453.3 | ||
|---|---|---|---|---|
| BE60.00-P-1006-01CA | Headlamp to maintenance flap | Dimension "E" | mm | 3 (± 2) |
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS
| Number | Designation | Model 453.4 | Model 453.0 | ||
|---|---|---|---|---|---|
| BE60.00-P-1007-01CA | Fender to maintenance flap | Dimension "F" | mm | 4 (± 2) | 4 (± 2) |
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS
| Number | Designation | Model 453.3 | ||
|---|---|---|---|---|
| BE60.00-P-1007-01CA | Fender to maintenance flap | Dimension "F" | mm | 4 (± 2) |
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS
| Number | Designation | Model 453.4 | Model 453.0 | ||
|---|---|---|---|---|---|
| BE60.00-P-1008-01CA | Fender to A-pillar | Dimension "G" | mm | 3 (± 1) | 3 (± 1) |
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS
| Number | Designation | Model 453.3 | ||
|---|---|---|---|---|
| BE60.00-P-1008-01CA | Fender to A-pillar | Dimension "G" | mm | 3 (± 1) |
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS
| Number | Designation | Model 453.4 | Model 453.3 | ||
|---|---|---|---|---|---|
| BE60.00-P-1009-01CA | Front door to A-pillar | Dimension "H1" | mm | 9 (± 1, 5) | 9 (± 1, 5) |
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS
| Number | Designation | Model 453.0 | ||
|---|---|---|---|---|
| BE60.00-P-1010-01CA | Windshield to A-pillar | Dimension "H2" | mm | 3 (± 1, 5) |
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS
| Number | Designation | Model 453.0 | ||
|---|---|---|---|---|
| BE60.00-P-1011-01CA | Windshield to roof paneling | Dimension "H3" | mm | 3 (± 1, 5) |
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS
| Number | Designation | Model 453.4 | Model 453.3 | ||
|---|---|---|---|---|---|
| BE60.00-P-1012-01CA | Fender to front door | Dimension "I1" | mm | 6 (± 1) | 6 (± 1) |
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS
| Number | Designation | Model 453.0 | ||
|---|---|---|---|---|
| BE60.00-P-1013-01CA | Front door to rear door | Dimension "I2" | mm | 4 (± 1, 5) |
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS
| Number | Designation | Model 453.4 | Model 453.3 | ||
|---|---|---|---|---|---|
| BE60.00-P-1014-01CA | Front door to longitudinal member | Dimension "J" | mm | 6 (± 1, 5) | 6 (± 1, 5) |
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS
| Number | Designation | Model 453.4 | Model 453.3 | ||
|---|---|---|---|---|---|
| BE60.00-P-1015-01CA | Front door to sidewall paneling | Dimension "K" | mm | 6 (± 1, 5) | 6 (± 1, 5) |
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS
| Number | Designation | Model 453.4 | Model 453.3 | ||
|---|---|---|---|---|---|
| BE60.00-P-1016-01CA | Front door to door handle | Dimension "L" | mm | 3 (± 1) | 3 (± 1) |
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS
| Number | Designation | Model 453.4 | Model 453.3 | ||
|---|---|---|---|---|---|
| BE60.00-P-1017-01CA | Front door side window to sidewall paneling | Dimension "M" | mm | 9 (± 1, 5) | 9 (± 1, 5) |
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS
| Number | Designation | Model 453.3 | ||
|---|---|---|---|---|
| BE60.00-P-1018-01CA | Rear window to rear spoiler | Dimension "N" | mm | 3, 5 (± 2) |
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS
| Number | Designation | Model 453.0 | Model 453.3 | ||
|---|---|---|---|---|---|
| BE60.00-P-1019-01CA | Rear spoiler to side spoiler | Dimension "O" | mm | 4 (± 1) | 4 (± 1) |
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS
| Number | Designation | Model 453.0 | Model 453.3 | ||
|---|---|---|---|---|---|
| BE60.00-P-1020-01CA | Side spoiler to rear window | Dimension "P" | mm | 3 (± 1) | 3 (± 1) |
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS
| Number | Designation | Model 453.0 | Model 453.3 | ||
|---|---|---|---|---|---|
| BE60.00-P-1021-01CA | Side spoiler to sidewall paneling | Dimension "Q" | mm | 4 (± 1, 5) | 4 (± 1, 5) |
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS
| Number | Designation | Model 453.3 | ||
|---|---|---|---|---|
| BE60.00-P-1022-01CA | Rear window to liftgate | Dimension "S" | mm | 4, 5 (± 1, 5) |
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS
| Number | Designation | Model 453.4 | Model 453.0 | ||
|---|---|---|---|---|---|
| BE60.00-P-1023-01CA | Taillamp panel to liftgate | Dimension "T" | mm | 4, 5 (± 1, 5) | 4, 5 (± 1, 5) |
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS
| Number | Designation | Model 453.3 | ||
|---|---|---|---|---|
| BE60.00-P-1023-01CA | Taillamp panel to liftgate | Dimension "T" | mm | 4, 5 (± 1, 5) |
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS
| Number | Designation | Model 453.4 | Model 453.3 | ||
|---|---|---|---|---|---|
| BE60.00-P-1024-01CA | Bumper to lower liftgate | Dimension "U" | mm | 5 (± 2) | 5 (± 2) |
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS
| Number | Designation | Model 453.4 | Model 453.0 | ||
|---|---|---|---|---|---|
| BE60.00-P-1025-01CA | Bumper to sidewall paneling | Dimension "W" | mm | 1 (± 0, 5) | 1 (± 0, 5) |
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS
| Number | Designation | Model 453.3 | ||
|---|---|---|---|---|
| BE60.00-P-1025-01CA | Bumper to sidewall paneling | Dimension "W" | mm | 1 (± 0, 5) |
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS
| Number | Designation | Model 453.4 | Model 453.0 | ||
|---|---|---|---|---|---|
| BE60.00-P-1026-01CA | Taillamp panel to taillamp | Dimension "X" | mm | 1 (± 1) | 1 (± 1) |
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS
| Number | Designation | Model 453.3 | ||
|---|---|---|---|---|
| BE60.00-P-1026-01CA | Taillamp panel to taillamp | Dimension "X" | mm | 1 (± 1) |
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS
| Number | Designation | Model 453.4 | Model 453.0 | ||
|---|---|---|---|---|---|
| BE60.00-P-1027-01CA | Upper fuel filler flap to sidewall paneling | Dimension "Y" | mm | 2, 5 (± 1) | 2, 5 (± 1) |
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS
| Number | Designation | Model 453.3 | ||
|---|---|---|---|---|
| BE60.00-P-1027-01CA | Upper fuel filler flap to sidewall paneling | Dimension "Y" | mm | 2, 5 (± 1) |
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS
| Number | Designation | Model 453.4 | Model 453.0 | ||
|---|---|---|---|---|---|
| BE60.00-P-1028-01CA | Side fuel filler flap to sidewall paneling | Dimension "Z" | mm | 2, 5 (± 1) | 2, 5 (± 1) |
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS
| Number | Designation | Model 453.3 | ||
|---|---|---|---|---|
| BE60.00-P-1028-01CA | Side fuel filler flap to sidewall paneling | Dimension "Z" | mm | 2, 5 (± 1) |
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS
| Number | Designation | Model 453.4 | ||
|---|---|---|---|---|
| BE60.00-P-1029-01CA | Soft top to front roof paneling | Dimension "V1" | mm | 6 (± 1, 5) |
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS
| Number | Designation | Model 453.4 | ||
|---|---|---|---|---|
| BE60.00-P-1030-01CA | Roof frame strut to B-pillar | Dimension "V2" | mm | 8 (± 2) |
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS
| Number | Designation | Model 453.4 | ||
|---|---|---|---|---|
| BE60.00-P-1031-01CA | Soft top to B-pillar | Dimension "V3" | mm | 8 (± 2) |
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS
| Number | Designation | Model 453.4 | ||
|---|---|---|---|---|
| BE60.00-P-1032-01CA | Soft top to liftgate | Dimension "V4" | mm | 8 (± 2) |

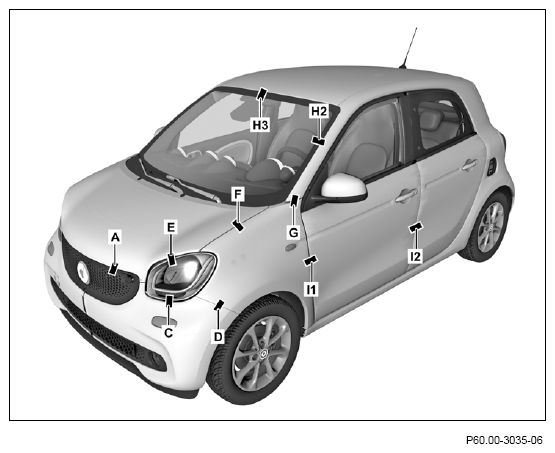

Model 453.0

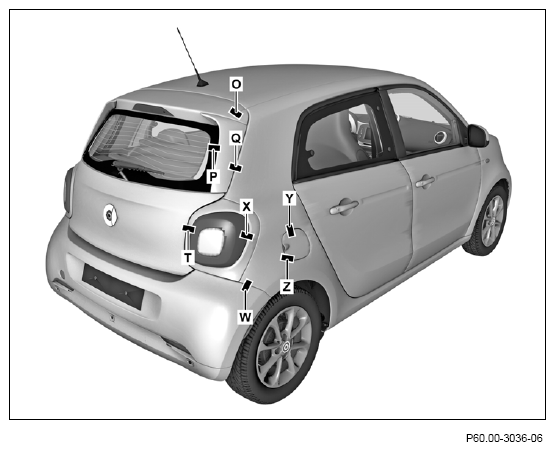

Model 453.0

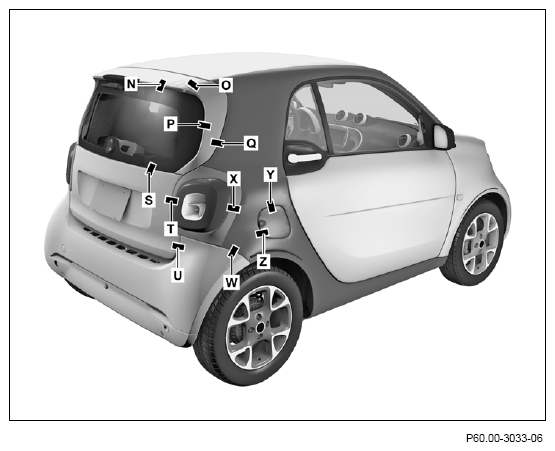

Model 453.3

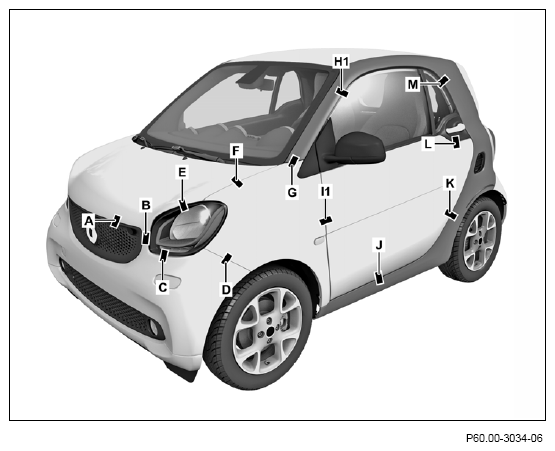

Model 453.3

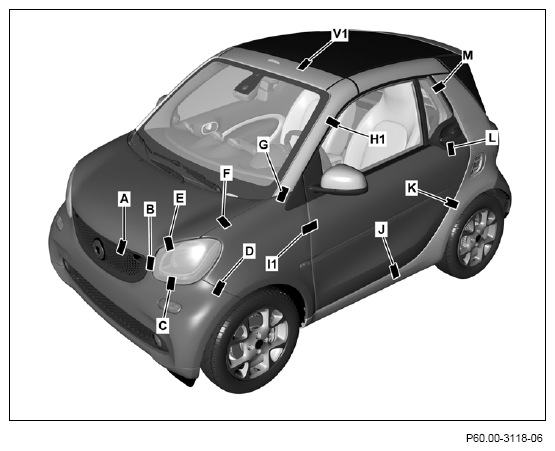

Model 453.4
- Check gap dimensions with
feeler gauge as per sketches.
Adjust assembly parts as per sketches. The gap should not run wedge-shaped or be too narrow at points. Deviations from parallel gap should be max. 1 mm over the entire length. If the inside clearance is too large or too small, the movable body parts must be centered accordingly. The reference measurements apply only for repair work on vehicles damaged in accidents.

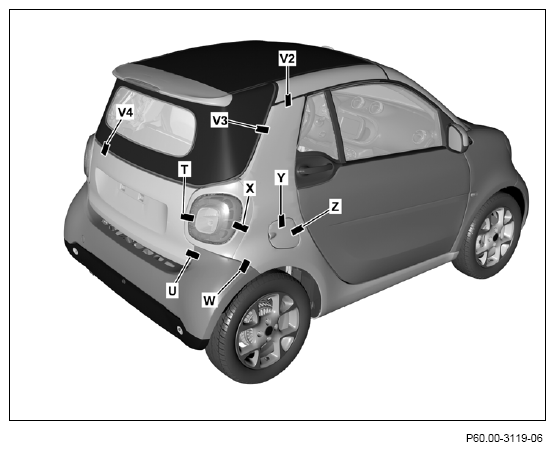

Model 453.4
