Remove/Install Headliner - AR68.30-P-4300SRA
MODEL 453.3
MODIFICATION NOTES
| 01.03.2017 | Method for bonded variant revised. |

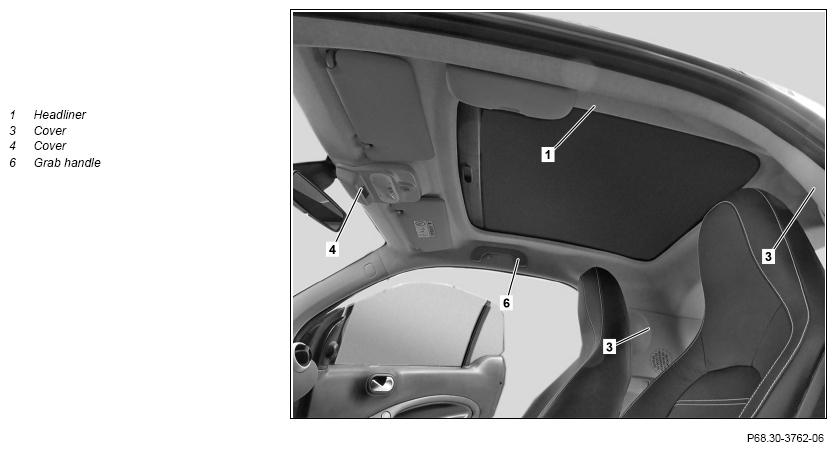

Shown on MODEL 453.3 with CODE E22 (Panoramic roof) and CODE B18 (Glasses compartment for driver) and CODE I18 (Grab handle for passenger)

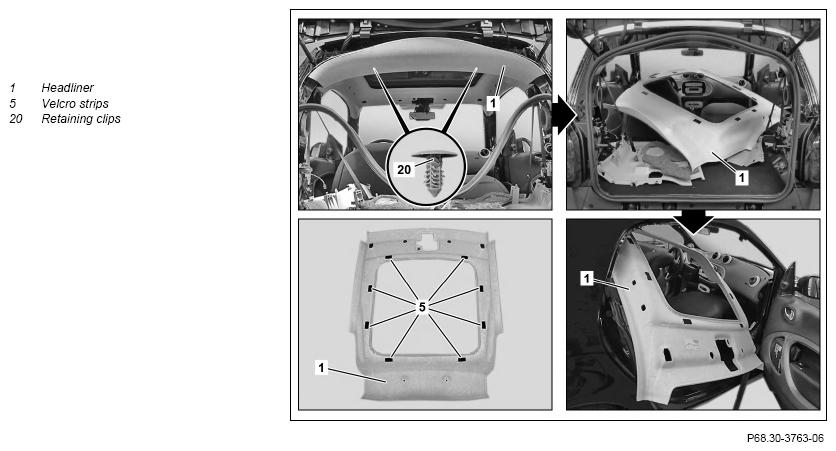

Shown on Model 453.3 with code E22 (Panoramic roof) and velcro fastener
| Remove | |||
| 1 | Remove left and right A-pillar paneling | AR68.30-P-4050SR | |
| 2 | Remove left and right paneling (3) | AR68.30-P-4800SRA | |
| 3 | Remove glasses compartment from roof | Model 453.3 with code B18 (Spectacles compartment for driver) |
AR68.30-P-4400SR |
| 4 | Remove left and right sun visor | AR68.60-P-5480SR | |
| 5 | Remove grab handle (6) | Model 453.3 with code I18 (Grab handle for front passenger) |
AR68.30-P-4330SR |
| 6 | Remove retaining clips(20) | Figure | |
| 7 | Remove cover (4) | Figure | |
| 8 | Move seats completely toward rear | ||
| 9 | Completely fold backrest toward front | ||
| 10 | Pull down headliner (1) at front until electrical wiring harness is accessible | Do not kink or bend headliner (1) excessively. Otherwise the headliner (1) can crack or break. | |
| 11 | Detach adhesive strips on electrical wiring harness from headliner (1) | ||
| 12 | Loosen headliner (1) from roof | Carefully loosen headliner (1) and do not kink or bend excessively. Otherwise the headliner (1) can crack or break. If the headliner (1) is bonded, it will be damaged when loosening, but can be reused. |
|
| 13 | Lower headliner (1), turn 90° to right and remove through passenger door as shown | Do not kink or bend headliner (1) excessively. Otherwise the headliner (1) can crack or break. |
|
| Install | |||
| 14 | Order repair set via XSF ticket | If the headliner (1) was bonded previously. |
|
| 15 | Remove glue residues | If the headliner (1) was bonded previously. | |
| 16 | Prepare bonded areas according to manufacturer's specifications | If the headliner (1) was bonded previously. | |
| 17 | Apply adhesive to headliner (1) in bonded areas | If the headliner (1) was bonded previously. | |
| 18 | Guide headliner (1) through passenger door into vehicle as shown, turn 90° to left, align on roof and press on | When the headliner (1) is bonded, the adhesive should not come into contact with other components. Otherwise they could be soiled irreversible. |
|
| 19 | Pull down headliner (1) at front, position electrical wiring harness and fix in place with new adhesive strips | When the headliner (1) is bonded, do not pull down headliner (1) to far. Otherwise the headliner (1) can loosen again and the adhesive force can be decreased. Do not kink or bend headliner (1) excessively. Otherwise the headliner (1) can crack or break. |
|
| 20 | Move seats to default position | ||
| 21 | Install cover (4) | ||
| 22 | Install retaining clips (20) | ||
| 23 | Install grab handle (6) | Model 453.3 with code I18 (Grab handle for front passenger) |
AR68.30-P-4330SR |
| 24 | Install left and right sun visor | AR68.60-P-5480SR | |
| 25 | Install eyeglasses compartment on roof | Model 453.3 with code B18 (Spectacles compartment for driver) |
AR68.30-P-4400SR |
| 26 | Install left and right paneling (3) | AR68.30-P-4800SRA | |
| 27 | Install left and right A-pillar paneling | AR68.30-P-4050SR |
