Remove/Install Check Strap On Liftgate - AR72.20-P-2571SRA

MODEL 453.3/4

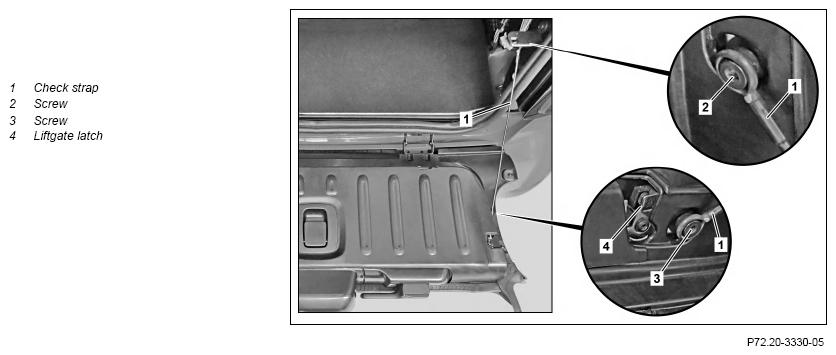

Shown on Model 453.3 on right side of vehicle

	Remove/install
1	Unscrew bolt (2) in area of lock striker	Do not loosen both check straps (1) simultaneously. If it is necessary to replace both check straps (1), replace one after another.
2	Unscrew bolt (3) from liftgate latch (4)
3	Remove check strap (1)
4	Install in the reverse order
