Remove/Install Gas-Operated Strut From Tailgate - AR72.20-P-2832SR
MODEL 453.0/3
Shown on left side of vehicle on Model 453.0
| Risk of injury from fingers being pinched or jammed when working on gas struts under pressure | Only remove and install pneumatic springs when they are not under tension and when the components are properly secured. | AS00.00-Z-0012-01A | |
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Remove/install | |||

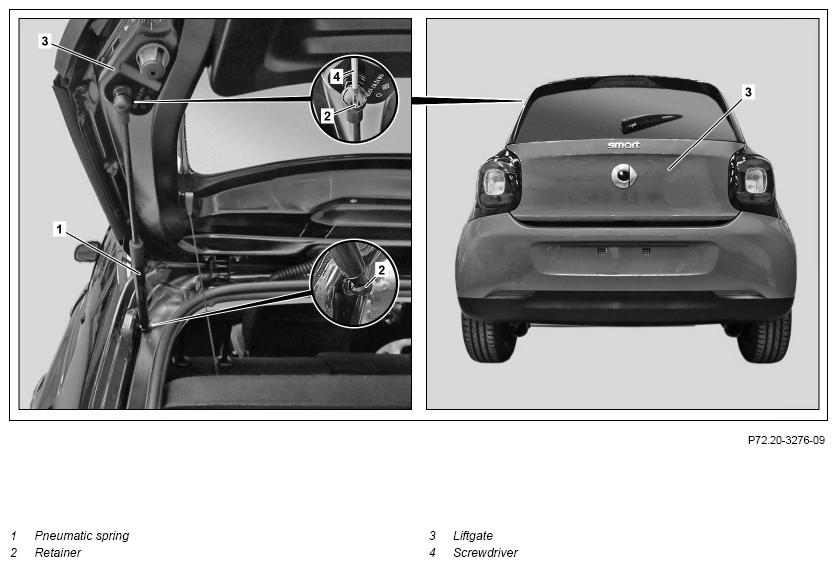

| 1 | Secure liftgate (3) with suitable support | ||
| 2 | Lift lower retainer (2) with screwdriver (4), and remove pneumatic spring (1) from roof pillar | Do not remove lower retainer (2). Otherwise the tension on the lower retainer (2) can be lost. |
|
| 3 | Lift upper retainer (2) with screwdriver (4), and detach and remove pneumatic spring (1) from liftgate (3) | Do not remove upper retainer (2). Otherwise the tension on the upper retainer (2) can be lost. |
|
| 4 | Risk of injury
caused by drilling gas-filled assemblies or components (noncombustible gases) Dispose of removed pneumatic spring (1) properly |
Wear safety glasses and a face mask. When replacing pneumatic spring (1). |
AS00.00-Z-0006-01A |
| 5 | Install in the reverse order |
