Remove/Install Side Paneling In Trunk - AR68.30-P-4800SRA
MODEL 453.3
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Switch off ignition and remove ignition key | ||
| 2 | Remove cargo space cover | ||
| 3 | Remove woofer | MODEL 453.3 (except 453.341) with CODE 810 (JBL sound system) |
|

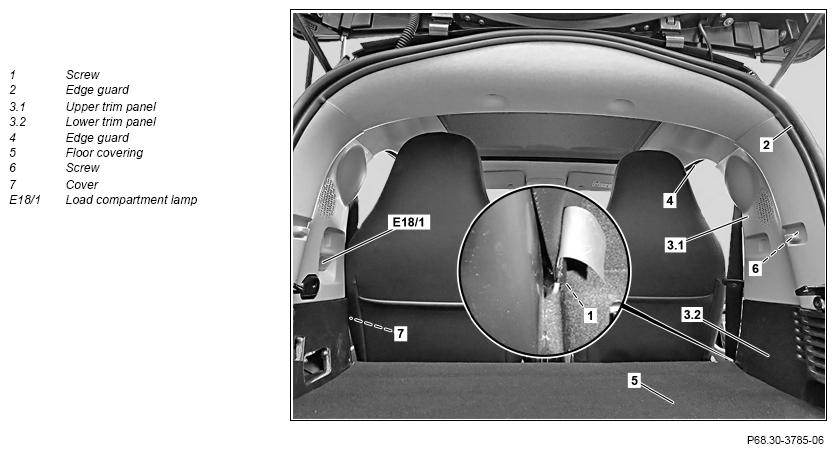

| 4 | Loose edge guard (4) in area of upper paneling (3.1) | ||
| 5 | Loosen edge guard (2) in area of upper paneling (3.1) and lower paneling (3.2) | ||
| 6 | Unclip paneling (7) from upper door sill | ||
| 7 | Remove the screw (1) and remove belt end fitting | *BA91.40-P-1004-01SR | |
| 8 | Remove floor covering (5) in cargo area | ||
| 9 | Unclip cover and unscrew bolt (6) | ||
| 10 | Unclip lower paneling (3.2) and remove | ||
| 11 | Unclip upper paneling (3.1) and remove | ||
| 12 | Remove cargo area lamp (E18/1) | When replacing left upper paneling. | |
| 13 | Install in the reverse order |
SEAT BELTS/EMERGENCY TENSIONING RETRACTORS
| Number | Designation | MODEL 453.3 | |
|---|---|---|---|
| BA91.40-P-1004-01SR | Screw/bolt, belt end fitting to B-pillar | Nm | 21 |
