Remove/Install Sun Visor - AR68.60-P-5480SR

MODEL 453

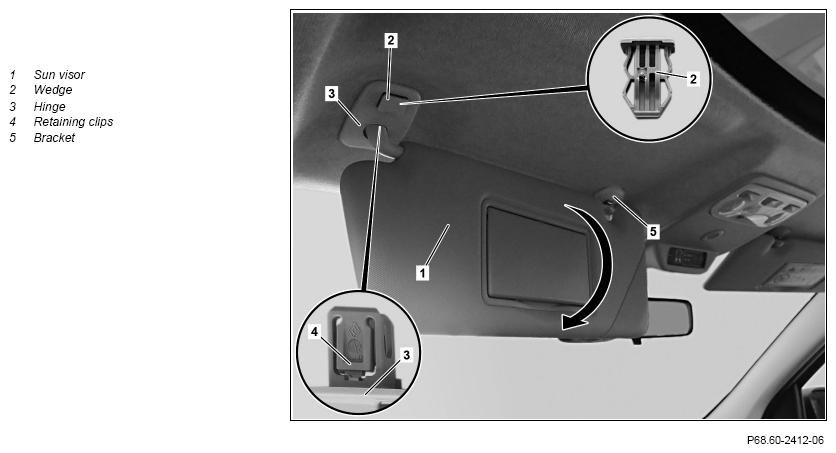

Shown on Model 453.0, left side

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Fold down left and right sun visor (1) and unhook from bracket (5)
2	Unclip wedge (2) with suitable tool
3	Detach retaining clips (4) and remove sun visor (1) with hinge (3)
4	Install in the reverse order
5	Install safety label on sun visor (1)	Only when replacing passenger sun visor.
