Remove/Install Eyeglass Compartment On Roof - AR68.30-P-4400SR
MODEL 453
with CODE B18 (Spectacles compartment for driver)
Shown on MODEL 453.0
 Courtesy of MERCEDES-BENZ USA
|
  |
Remove/install |
|
|
| 1 |

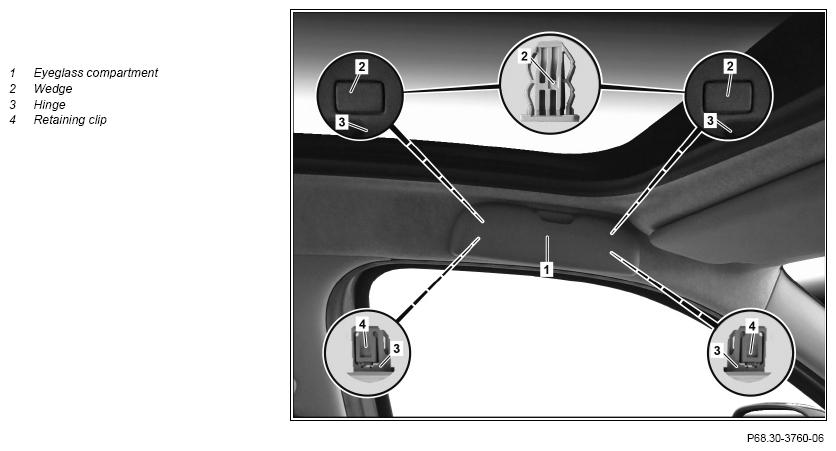

Open glasses compartment (1) and unclip wedge (2) from hinge (3) |
|
|
| 2 |
Loosen retaining clip (4) at top and bottom with suitable tool ad remove glasses compartment (1) |
|
|
| 3 |
Install in the reverse order |
|
|
