Remove/Install Paneling On A-Pillar - AR68.30-P-4050SR

MODEL 453

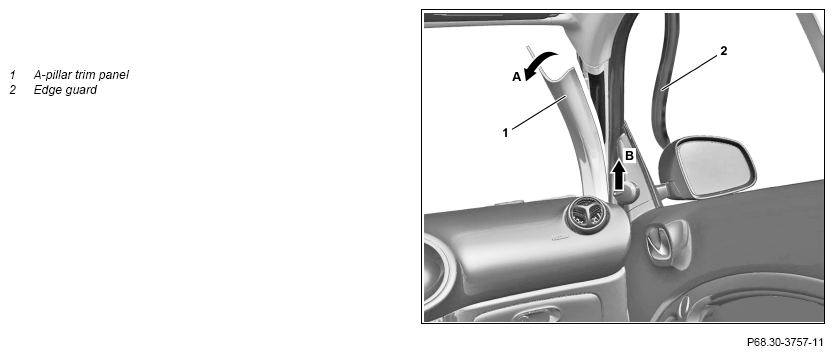

Model 453.0, shown on right side of vehicle

Courtesy of MERCEDES-BENZ USA

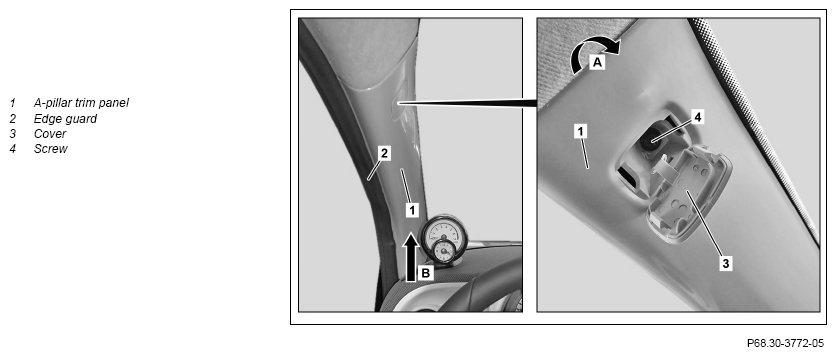

Model 453.3, shown on left of vehicle with code V31 (Additional instruments (cockpit clock and tachometer))

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Detach edges (2) in area of A-pillar paneling (1)
2	Unclip cover (3) and unscrew bolt (4)	Model 453.3/4
3	Unclip A-pillar paneling (1) (arrow A) and remove upward (arrow B)	: Check retaining clips on A- pillar paneling (1). Clip remover If complaint present ↓ Replace retaining clips on A-pillar paneling (1)	Figure
4	Install in the reverse order

Fig 1: Identifying Clip Remover (452 589 01 63 00)

Courtesy of MERCEDES-BENZ USA
