Remove/Install Handle On Roof - AR68.30-P-4330SR
Remove/Install Handle On Roof - AR68.30-P-4330SR
MODEL 453.0/3
Courtesy of MERCEDES-BENZ USA
Remove/install
1

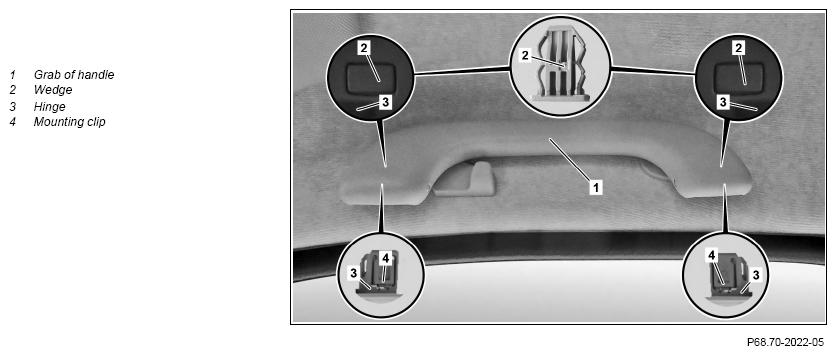

Fold up grab handle (1) and unclip wedges (2) from hinges (3)
2
Loosen retaining clips (4) at top and bottom with suitable tool and remove grab handle (1)
3
Install in the reverse order
