Remove/Install Roof Paneling - Ar65.10-P-5702SR
Model 453.3
with code E23 (solid roof)
MODIFICATION NOTES
| 05.09.2017 | Workshop equipment is linked in EPC with replacement part. | Only use linked workshop equipment. |
| Preparation | |||
| 1 | Workshop equipment is linked in EPC with replacement part. | ||
| Remove | |||
| 2 | Remove headliner | AR68.30-P-4300SRA | |

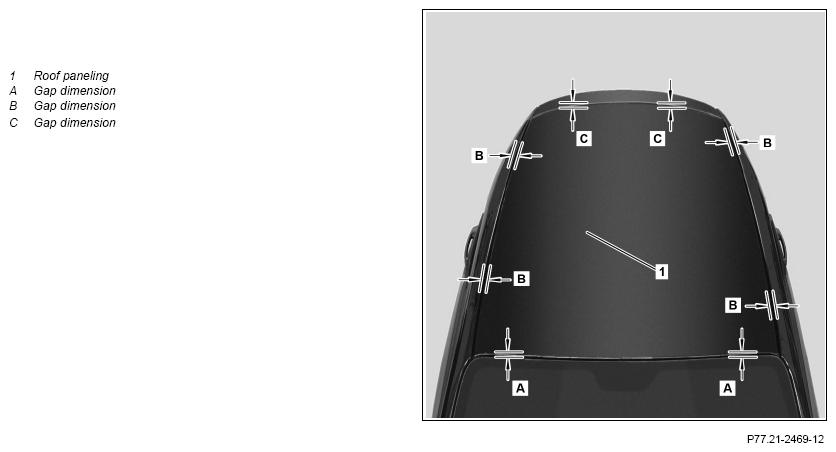

| 3 | Determine gap dimensions (A, B, C) with feeler gauge and note | Figure | |
| Risk of injury . Injury may result if the cutting wire tears or heats up while using it to cut out components that are glued into place. | Wear protective gloves and safety glasses. | AS65.00-Z-0001-01A | |
| 4 | Cut out roof paneling (1) with cutting wire | AR65.10-P-5702-01SR | |
| Install | |||
| 5 | Open side window in driver door | The side window of the driver door should remain open during the curing time. Otherwise the roof paneling (1) can be pressed toward outside by the air when the doors are closed. |
|
| 6 | Prepare roof paneling (1) for installation | AR65.10-P-5702-02SR | |
| 7 | Prepare roof frame for installation roof paneling (1) | AR65.10-P-5702-04SR | |
| 8 | Apply adhesive material to roof paneling (1) | AR65.10-P-5702-05SR | |
| 9 | install roof paneling (1) | Perform following work only after curing time. |
AR65.10-P-5702-03SR |
| 10 | install headliner | AR68.30-P-4300SRA | |
| 11 | Close side window on driver door |
