Remove Roof Paneling - Ar65.10-P-5702-01SR
| Risk of injury . Injury may result if the cutting wire tears or heats up while using it to cut out components that are glued into place. | Wear protective gloves and safety glasses. | AS65.00-Z-0001-01A |
Model 453.3 with code E23 (solid roof)

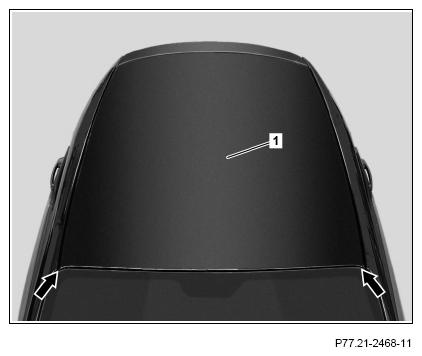

- Mask adjacent pint surfaces to roof paneling (1) with suitable adhesive tape.
- Position two cup suction tools on roof paneling (1).
- Cut cutting wire to approx. 50 cm.
- Punch cutting wire at front left and right corner (arrow).
- Fasten counterholder at end of cutting wire in vehicle interior.
- Cut out roof paneling (1) and remove from roof frame.
Helper required to cut out and remove.
It is not possible to remove the roof paneling (1) without damaging the spacers cast-on and must be renewed.
