Apply Adhesive Material - Ar65.10-P-5702-05SR

Model 453.3

with code E23 (solid roof)

Roof paneling (3) must be mounted within 2 min of adhesive material application on roof frame.

Otherwise adhesion problems can occur.

Durability is achieved after approx. 2 hours measured from the time the roof paneling (3) is installed. The nominal strength is achieved only after approx. 8 h.

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

1. Cut application nozzle (2) to size so that a uniform bead with a height (b) of approx. 12 mm and a width of approx. 8 mm can be applied.

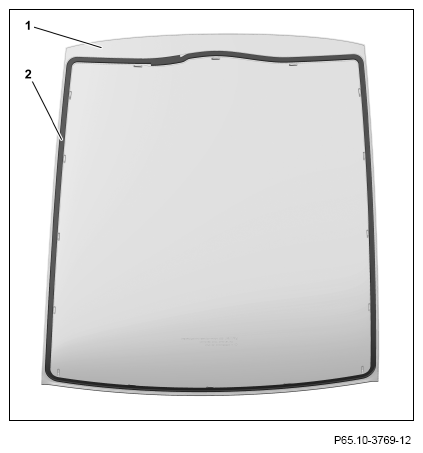

2. Apply adhesive material (2) to roof paneling (1) as shown.

   Workshop equipment is linked in EPC with replacement part.

   Completely press out glue not required immediately following application (disposal).
