Preparing Roof Paneling For Installation - Ar65.10-P-5702-02SR

Model 453.3

with code E23 (solid roof)

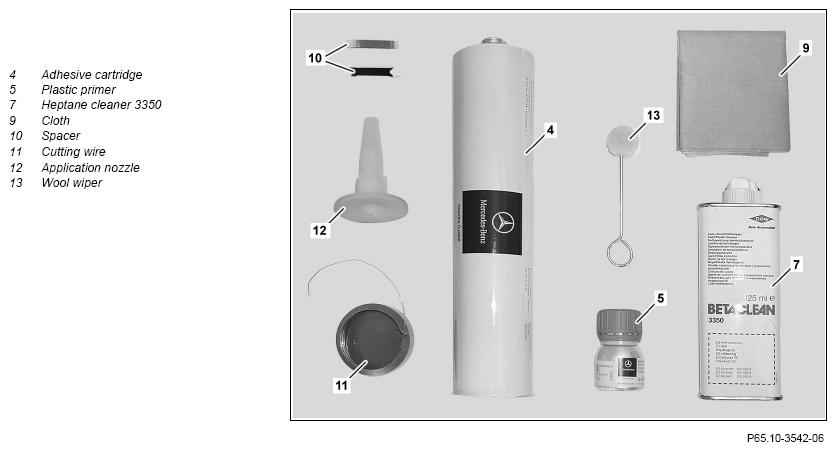

Kit adhesive (with heptane cleaner)

Courtesy of MERCEDES-BENZ USA

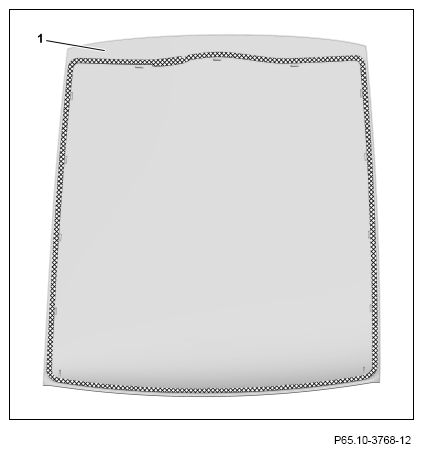

1. Position two cup suction tolls at top of roof paneling (1).
2. Clean bonding area of roof paneling (1) with heptane cleaner 3350 (7).

   The gluing area on the roof paneling (1) must be absolutely free of dust and grease.

   Dirt can lead to paint adhesion problems of adhesive material.

3. Coat bonding area on roof paneling (1) with plastic primer (5).

   Allow plastic primer (5) to flash off for min. 10 to 15 minutes.

   Courtesy of MERCEDES-BENZ USA
