Remove/install oil pump - AR18.10-P-6020EL

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 157, 276, 278 in MODEL 212, 218

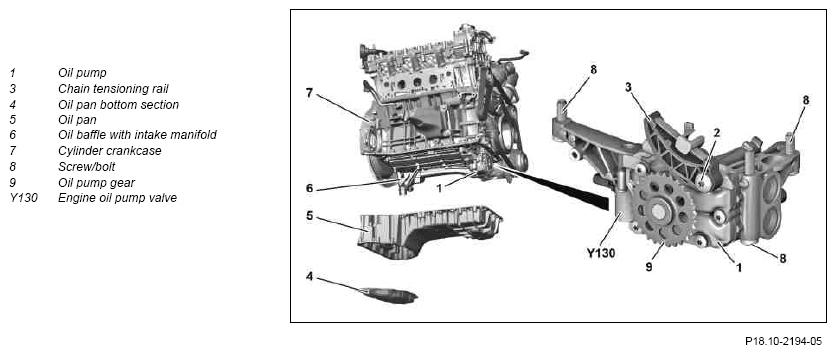

Fig 1: Oil Pump Remove/Install Components
G09975216Courtesy of MERCEDES-BENZ USA
REMOVINGINSTALLING Remove/install
1 Remove oil pan bottom section (4) and oil pan (5) ENGINE 276.8 in MODEL 212, 218 AR01.45-P-7500ELS
TORQUE SPECIFICATION Notes on sealant path for oil pan AH01.45-P-0001-01MMA
TORQUE SPECIFICATION Notes on sealant path for oil pan AH01.45-P-0001-01MMB
ENGINE 276 in MODEL 212.095/195 AR01.45-P-7500EHV
ENGINE 276.9 in MODEL 212 (except 212.095/195), 218 AR01.45-P-7500EL
ENGINE 157, 278 in MODEL 212, 218
INSTALLATION IMPORTANT Observe notes on sealant path on the oil pan (5).		 AR01.45-P-7500ELB
TORQUE SPECIFICATION Screw/bolt, oil pan to crankcase/timing case cover/rear end cover *BA01.45-P-1001-01E
TORQUE SPECIFICATION Screw/bolt, oil pan to crankcase at transmission end *BA01.45-P-1002-01E
TORQUE SPECIFICATION Bolt, oil pan bottom section to oil pan *BA01.45-P-1003-01E
Loctite 5970 sealant *BR00.45-Z-1013-01A
Loctite 7200 *BR00.45-Z-1038-04A
Loctite 7063 cleaning spray (150 ml) *BR00.45-Z-1046-04A
2 Detach oil baffle with intake manifold (6) from oil pump (1) and cylinder crankcase (7) TORQUE SPECIFICATION Bolt, oil suction pipe with oil deflector to crankcase *BA18.10-P-1005-01R
3 Remove screw/bolts (8) and unfasten oil pump (1) from cylinder crankcase TORQUE SPECIFICATION Bolt, oil pump to cylinder crankcase *BA18.10-P-1001-01R
4 Disconnect electrical connection on engine oil pump valve (Y130)
5 Push back chain tensioning rail (3), take oil pump chain of the oil pump gear (9) and remove oil pump (1) INSTALLATION IMPORTANT Fill oil pump (1) with engine oil before installation so that oil is delivered at the initial startup.
INSPECT Check
6 Check oil pump gear (9) for easy movement and damage IMPORTANT Install new oil pump (1) if necessary.
7 Check clamping device for the oil pump (1)   AR18.10-P-2000EL
IMPORTANT If necessary replace clamping device for oil pump (1).
8 Install in the reverse order
DANGER Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running. Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. AS00.00-Z-0005-01A
9 Carry out an engine test run, checking the engine for proper operation and leaktightness
OIL PAN

Number Designation ENGINE 157 ENGINE 276
BA01.45-P-1001-01E Screw/bolt, oil pan to crankcase/timing case cover/rear end cover M6 Nm 9 9
OIL PAN

Number Designation ENGINE 278
BA01.45-P-1001-01E Screw/bolt, oil pan to crankcase/timing case cover/rear end cover M6 Nm 9
OIL PAN

Number Designation ENGINE 157 ENGINE 276
BA01.45-P-1002-01E Screw/bolt, oil pan to crankcase at transmission end M8 Nm 20 20
OIL PAN

Number Designation ENGINE 278
BA01.45-P-1002-01E Screw/bolt, oil pan to crankcase at transmission end M8 Nm 20
OIL PAN

Number Designation ENGINE 157 ENGINE 276
BA01.45-P-1003-01E Bolt, oil pan bottom section to oil pan Nm 14 14
OIL PAN

Number Designation ENGINE 278
BA01.45-P-1003-01E Bolt, oil pan bottom section to oil pan Nm 14
OIL PUMP

Number Designation ENGINE 157 ENGINE 276
BA18.10-P-1001-01R Bolt, oil pump to cylinder crankcase Stage 1 Nm 5 5
Stage 2 Nm 20 20
OIL PUMP

Number Designation ENGINE 278
BA18.10-P-1001-01R Bolt, oil pump to cylinder crankcase Stage 1 Nm 5
Stage 2 Nm 20
OIL PUMP

Number Designation ENGINE 157 ENGINE 276
BA18.10-P-1005-01R Bolt, oil suction pipe with oil deflector to crankcase Nm 9 14
OIL PUMP

Number Designation ENGINE 278
BA18.10-P-1005-01R Bolt, oil suction pipe with oil deflector to crankcase Nm 9
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1013-01A Loctite 5970 sealant A 003 989 98 20
BR00.45-Z-1038-04A Loctite 7200 -
BR00.45-Z-1046-04A Loctite 7063 cleaning spray (150 ml) A 001 986 71 71 10
