Remove/install the tensioning device for the oil pump chain - AR18.10-P-2000EL
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINES 157, 276, 278 in MODEL 212, 218
| Remove/install | |||

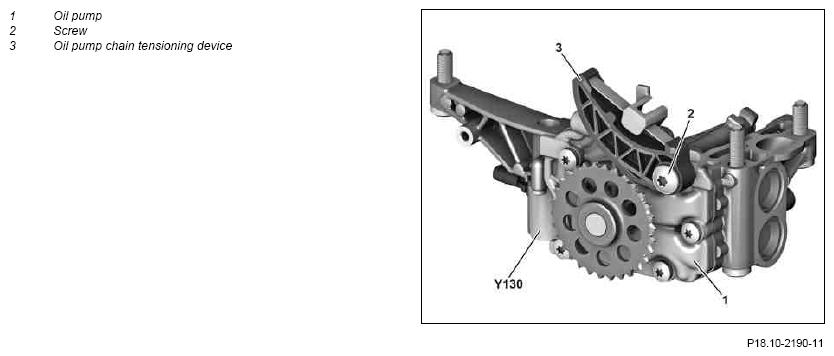

| 1 | Remove oil pump (1) | AR18.10-P-6020EL | |
| 2 | Remove bolt (2) and remove tensioning device (3) from oil pump (1) | *BA18.10-P-1004-01R | |
| Checking | |||
| 3 | Check clamping device (3) and replace if necessary | ||
| 4 | Install in the reverse order |
OIL PUMP
| Number | Designation | Engine 157 | Engine 276 | Engine 278 | |
|---|---|---|---|---|---|
| BA18.10-P-1004-01R | Chain tensioning bracket fit bolt on oil pump cover | Nm | 9 | 9 | 9 |
