Remove/install oil pump - AR18.10-P-6020CD

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINES 651 in MODELS 166, 172, 204, 207, 212, 218, 221

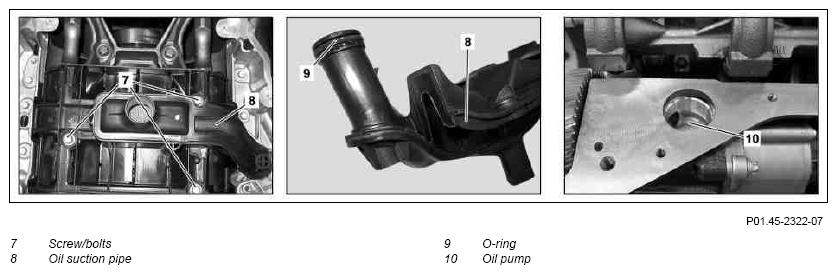

Fig 1: Oil Pump Remove/Install Components (1 Of 2)
G09975212Courtesy of MERCEDES-BENZ USA

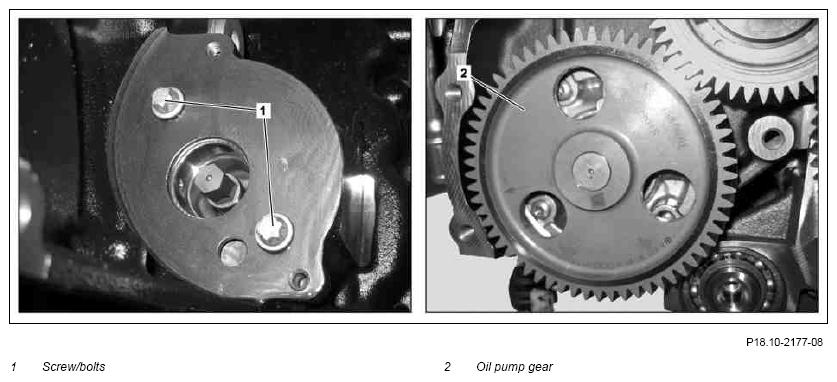

Fig 2: Oil Pump Remove/Install Components (2 Of 2)
G09975213Courtesy of MERCEDES-BENZ USA
REMOVINGINSTALLING Remove/install
DANGER Risk of death  caused by vehicle slipping or toppling off of the lifting platform. Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer. AS00.00-Z-0010-01A
DANGER Risk of accident  caused by vehicle starting off by itself when engine is running. Risk of injury  caused by contusions and burns during starting procedure or when working near the engine as it is running Secure vehicle to prevent it from moving by itself.
Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.
AS00.00-Z-0005-01A
1 Secure vehicle on vehicle lift Model 166 AR00.60-P-0100GZ
Model 172 AR00.60-P-0100T
Model 204, 207 AR00.60-P-0100CW
Model 212, 218 AR00.60-P-0100EWS
Model 221.0/1 AR00.60-P-0100SX
2 Remove timing case cover   AR01.40-P-8000CD
3 Remove vacuum pump   AR43.05-P-1320CD
4.1 Remove oil pan bottom section Model 172, 204 (except 204.9), 212 except 4MATIC
Model 207, 218
AR01.45-P-7555CD
4.2 Remove oil pan Model 166.0 AR01.45-P-7500GQA
Model 204, 212 only 4MATIC AR01.45-P-7500OMD
Model 221 AR01.45-P-7500SXA
5 Remove screw/bolts (7) for oil suction pipe (8) TORQUE SPECIFICATION *BA18.10-P-1002-01O
6 Detach oil suction pipe (8) INSTALLATION IMPORTANT Replace O-ring (9) for oil suction pipe (8). First insert oil suction pipe (8) fully into oil pan (10) and then tighten.
7.1 Set piston on 1st cylinder to ignition top dead center (OT) Without code (B03) ECO start/stop function
IMPORTANT Rotate engine at crankshaft using a SPECIAL TOOL counterholder in direction of engine rotation until the 0° marking on the belt pulley/vibration damper coincides with the marking on the crankcase.

SPECIAL TOOL Counterholder Fig 3
7.2 Set piston on 1st cylinder to ignition top dead center (OT) With code (B03) ECO start/stop function
    Rotate engine at crankshaft using a SPECIAL TOOL counterholder in direction of engine rotation until the 0° marking on the belt pulley/vibration damper coincides with the marking on the crankcase.
8 Remove intermediate gear for engine control between crankshaft and high-pressure pump drive gear AR05.10-P-7620CD
9 Remove screws/bolts (1) TORQUE SPECIFICATION *BA18.10-P-1001-01O
10 Remove oil pump (10) on oil pump (2) gear INSTALLATION IMPORTANT Only install oil pumps (10) from the same manufacturer; check oil pump (10) for ease of movement.
If oil pump (10) is dry, fill it with engine oil so that oil is delivered when engine is started. Check adjustment of Lanchester balance shaft (adjust if necessary).
See: ↓

Check basic position of balancing shaft AR03.20-P-3637CD
11 Install in the reverse order
12 Check engine oil level, correct if necessary NOTES The engine oil level must lie between "Min" and "Max". Engine damage can occur otherwise.
13 Connect STAR DIAGNOSIS, read out fault memory and erase if required TORQUE SPECIFICATION Stored faults which may be caused by assembly work, test work, removed lines or a simulation, must be processed and erased in fault memories after completing the work. AD00.00-P-2000-04A
INSPECT Checking
14 Check for leaks with engine running
OIL PUMP

Number Designation Engine 651
BA18.10-P-1001-01O Screw/bolt, oil pump to crankcase Stage 1 Nm 6
Stage 2 ∠° 90
BA18.10-P-1002-01O Screw/bolt, oil suction pipe to bearing housing M6 Stage 1 Nm 6
Stage 2 ∠° 90
M8 - Nm 34
Fig 3: Identifying Counterholder (651 589 00 40 00)
G09975214Courtesy of MERCEDES-BENZ USA
