Remove/install oil dipstick guide tube - AR18.40-P-3510ELS
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 276.8 in MODEL 207, 212, 218

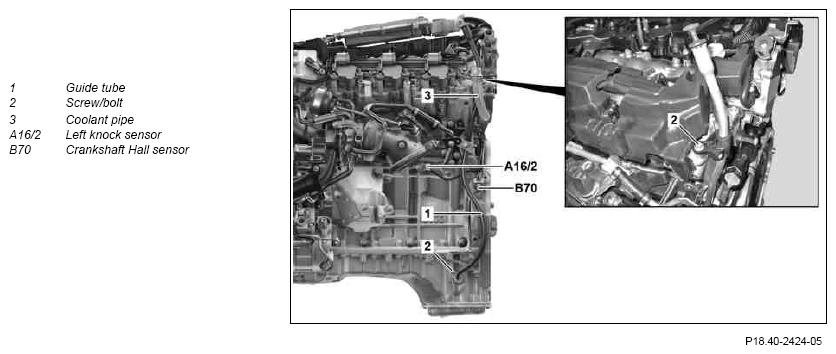

Shown on MODEL 212 without CODE M005 (4MATIC)

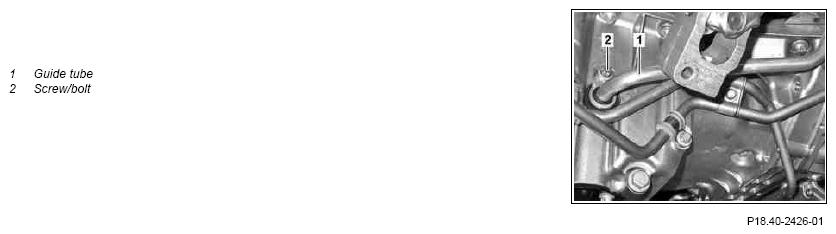

Shown on MODEL 212 with CODE M005 (4MATIC)
| Notes on threaded connections with aluminum screws/bolts | AH00.00-P-0006-01RM | ||
| Remove/install | |||
| 1 | Remove upper engine cover | ||
| 2 | Remove left-hand air filter housing | AR09.10-P-1150ELS | |
| 3 | Remove soundproofing on left rail | ||
| 4 | Remove lower engine compartment paneling | AR61.20-P-1105EW | |
| 5 | Drain engine oil and catch in a suitable container | ||
| AP18.00-P-0101CWZ | |||
| 6 | Drain coolant at radiator | MODEL 207 with ENGINE 276.8 | AR20.00-P-1142A |
| Notes on coolant | AH20.00-N-2080-01A | ||
| MODEL 212, 218 with ENGINE 276.8 | AR20.00-P-1142EL | ||
| 7 | Remove coolant pipe (3) | *BA20.10-P-1012-01AA | |
| 8 | Remove left catalytic converter | ENGINE 276.8 in MODEL 212, 218 with CODE 920 (Direct petrol injection with stratified charging) with CODE M005 (4MATIC) | |
| AR49.10-P-7100EL | |||
| 9 | Remove left exhaust gas recirculation valve | ENGINE 276.8 in MODEL 207, 212, 218 with CODE 920 (Direct petrol injection with stratified charging) | |
| AR14.20-P-7662ELS | |||
| 10 | Remove bracket for exhaust gas recirculation | ENGINE 276.8 in MODEL 207, 212, 218 with CODE 920 (Direct petrol injection with stratified charging) | |
| 11 | Remove heat shield from crankshaft Hall sensor (B70) | MODEL 207 with ENGINE 276.8 | AR15.12-P-2136FH |
| MODEL 212, 218 with ENGINE 276.8 | AR15.12-P-2136EL | ||
| 12.1 | Remove heat shield on left knock sensor (A16/2) | ENGINE 276.8 in MODEL 207, 212, 218 without CODE M005 (4MATIC) | |
| 12.2 | Remove heat shield at starter | ENGINE 276.8 in MODEL 212, 218 with CODE M005 (4MATIC) | |
| 13 | Disconnect electrical line at starter | ENGINE 276.8 in MODEL 212, 218 with CODE M005 (4MATIC) | AR15.30-P-7100EL |
| 14 | Detach vacuum line to brake booster on vacuum pump. | MODEL 212, 218 with ENGINE 276.8 with CODE M005 (4MATIC) | AR43.05-P-1320EL |
| 15 | Remove screw/bolts (2) and remove oil dipstick guide tube (1) upwards | Replace screw/bolts (2). |
|
| *BA01.45-P-1004-01E | |||
| *BA01.45-P-1005-01E | |||
| 16 | Install in the reverse order | ||
| 17 | Check engine cooling system for leaktightness | MODEL 207 with ENGINE 276.8 | AR20.00-P-1010ELA |
| MODEL 212, 218 with ENGINE 276.8 | AR20.00-P-1010EL | ||
| 18 | Check engine oil level; correct if necessary | ||
| AP18.00-P-0101CWZ | |||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 19 | Perform an engine test run and check engine for leaktightness |
OIL PAN
| Number | Designation | ENGINE 276 | |
|---|---|---|---|
| BA01.45-P-1004-01E | Screw/bolt, guide tube to oil pan | Nm | 5 |
OIL PAN
| Number | Designation | ENGINE 276 | |
|---|---|---|---|
| BA01.45-P-1005-01E | Screw/bolt, guide tube to cylinder head/cylinder head cover/front cover | Nm | 5 |
COOLANT PUMP, COOLANT THERMOSTAT
| Number | Designation | ENGINE 276 | ||
|---|---|---|---|---|
| BA20.10-P-1012-01AA | Bolt, coolant pipe to guide tube | M6 | Nm | 9 |
