Remove/install vacuum pump - AR43.05-P-1320EL

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 166, 212, 218, 251 with ENGINE 276

Shown on engine 276.8

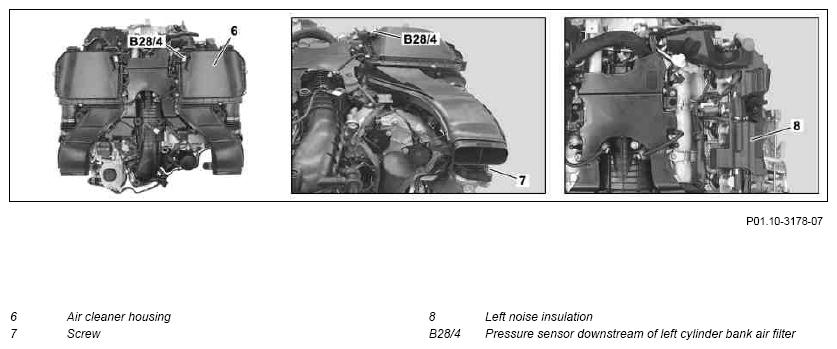

Fig 1: Engine Cover & Engine Air Intake Duct

Courtesy of MERCEDES-BENZ USA

Shown on model 218 with engine 276.9

Fig 2: Center Bulkhead

Courtesy of MERCEDES-BENZ USA

Shown on engine 276.9

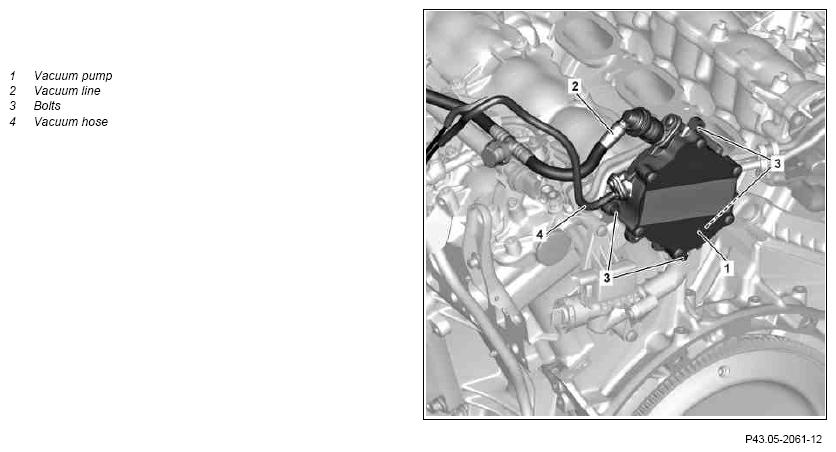

Fig 3: Vacuum Pump Remove/Install Components - Shown On Engine 276.9

Courtesy of MERCEDES-BENZ USA

Shown on engine 276.8

Fig 4: Vacuum Pump Remove/Install Components - Shown On Engine 276.8

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Risk of injury . Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
1	Open engine hood and raise to vertical position	MODEL 166, 212, 218, 251
		MODEL 166	AR88.40-P-1000GQ
		MODEL 212	AR88.40-P-1000EW
		MODEL 251	AR88.40-P-1000RT
2	Remove engine cover (5)	Ensure correct seating of the engine cover (5).
3	Remove intake manifold	MODEL 166, 212, 218, 251 with ENGINE 276.9
		MODEL 166, 251	AR09.20-P-1961GQ
		MODEL 212, 218	AR09.20-P-1961EL
4	Remove air filter housing (6) on left	MODEL 166, 212 with ENGINE 276.8
		MODEL 212 with ENGINE 276.8	AR09.10-P-1150ELS
		MODEL 166 with ENGINE 276.8 To do so, undo the bolt (7). Make sure that the air filter housing (6) is seated correctly and check the O-ring for damage; replace if necessary.	AR09.10-P-1150GQC
5.1	Remove center bulkhead (78)	MODEL 212, 218, 251 with ENGINE 276
5.1	Remove center bulkhead (78)	MODEL 212 with ENGINE 276.8 MODEL 212.095/195 with ENGINE 276.9 Ensure correct seating of the center bulkhead (78).	AR61.25-P-6600EW
5.2	Remove center and right sections of bulkhead	MODEL 166 with ENGINE 276
6	Remove left noise insulation (8)	MODEL 166, 212 with ENGINE 276.8 Ensure correct seating of the left noise insulation (8).
7	Detach vacuum line (2) at vacuum pump (1).
8	Detach vacuum hose (4) from vacuum pump (1)
9	Remove bolts (3)	Replace bolts (3).
9	Remove bolts (3)	Bolt, vacuum pump to cylinder head/cylinder head cover	*BA43.05-P-1001-01K
10	Remove vacuum pump (1) upwards	Clean sealing surfaces and replace gasket. Note position of drive plate for vacuum pump (1) during assembly.
11	Install in the reverse order
	Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
12	Test run engine and carry out leak check		AS00.00-Z-0005-01A

VACUUM PUMP

Number	Designation		MODEL 166, 172, 204, 205, 207, 212, 218, 221, 231, 251 with ENGINE 276, MODEL 222 with ENGINE 276 except CODE ME05
BA43.05-P-1001-01K	Bolt, vacuum pump to cylinder head/cylinder head cover	Nm	9
