Remove/install radiator - AR20.20-P-3865EL

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 276 in MODEL 212, 218

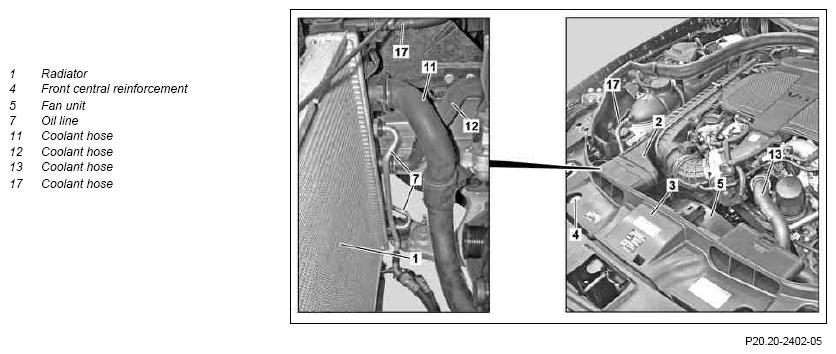

Shown on model 212 with engine 276.9

Fig 1: Radiator Remove/Install Components - Shown On Model 212 With Engine 276.9

Courtesy of MERCEDES-BENZ USA

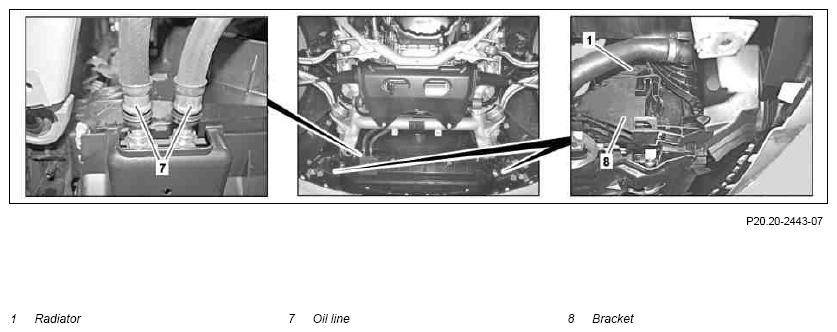

Shown on model 212.095

Fig 2: Radiator Remove/Install Components - Shown On Model 212.095

Courtesy of MERCEDES-BENZ USA

MODEL 212.095/195

Fig 3: Radiator Remove/Install Components - Shown On Model 212.095/195

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove fan unit (5)		AR20.40-P-5050EL
2	Remove front center reinforcement (4)	MODEL 218 with ENGINE 276 (except 276.8)	AR62.30-P-1570EL
2	Remove front center reinforcement (4)	MODEL 212 with ENGINE 276 (except 276.8)	AR62.30-P-1570EW
3	Remove Distronic sensor	ENGINE 276.8 in MODEL 218 with CODE 233 (DISTRONIC PLUS)	AR30.30-P-1010EL
3	Remove Distronic sensor	ENGINE 276.8 in MODEL 212 with CODE 233 (DISTRONIC PLUS)	AR30.30-P-1010EW
4	Drain coolant		AR20.00-P-1142EL
5	Detach coolant hoses (11, 12, 13, 17) at the radiator (1)		AR20.20-P-7441-01RQ
5	Detach coolant hoses (11, 12, 13, 17) at the radiator (1)	Check coolant hoses (11, 12, 13, 17) and hose connectors for damage; replace if necessary.
6	Disconnect coolant hose (18) at low-temperature circuit cooler and place to one side	ENGINE 276 in MODEL 212.095/195 Check coolant hose (18) and hose clamp for damage and replace if necessary.
6		Hose clamp pliers	Figure
7	Drain air conditioning system	ENGINE 276.8 in MODEL 212, 218	AR83.30-P-1760CW
8	Detach refrigerant line at condenser and close off openings with a stop plug	ENGINE 276.8 in MODEL 212, 218
		Screw/bolt, line to condenser	*BA83.30-P-1022-01A
		Record plug	Fig 4
9	Detach oil line (7) from oil cooler	ENGINE 276 (except 276.8) in MODEL 212 with TRANSMISSION 722.9, 724.2 ENGINE 276 (except 276.8) in MODEL 218 with TRANSMISSION 722.9 Seal connections with stop plugs.	AR27.10-P-0501-03CW
9	Detach oil line (7) from oil cooler	Record plug	Fig 4
10	Unclip electrical connection (6) and disconnect	ENGINE 276 in MODEL 212.095/195
11	Clip off lower air duct segment on cooler (1)	ENGINE 276 in MODEL 212 (except 212.095/195), 218
12	Unclip condenser from cooler (1) and lift out	ENGINE 276 in MODEL 212 (except 212.095/195), 218
13	Unhook cooler (1) on the holders (8) and secure radiator package with cable tie against falling down	ENGINE 276 in MODEL 212.095/195 The radiator package consists of an oil cooler, low-temperature circuit cooler and condenser.
14	Take out radiator (1) in an upward direction	MODEL 212.095/195 Swivel the cooler (1) to the left side downwards and remove upwards.
	Check
15	Check radiator (1) for signs of damage	Only when reusing the radiator (1).
16	Install in the reverse order
	Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
17	Perform an engine test run and check engine cooling system for proper operation

AIR CONDITIONING

Number	Designation		MODEL 212	MODEL 218
BA83.30-P-1022-01A	Screw/bolt, line to condenser	Nm	8	8

Fig 4: Identifying Record Plug (129 589 00 91 00)

Courtesy of MERCEDES-BENZ USA

Fig 5: Identifying Hose Clamp Pliers (003 589 03 37 00)

Courtesy of MERCEDES-BENZ USA
