Remove/install fan unit - AR20.40-P-5050EL
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 157, 276, 278 in MODEL 212, 218
Shown on engine 276.9
Shown on model 212.095
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Remove/install | |||

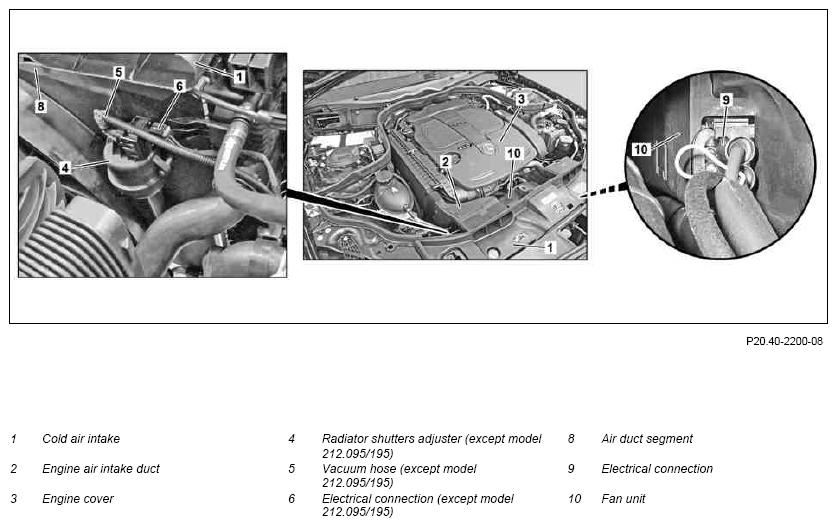

| 1.1 | Remove engine cover (3) and engine intake air duct (2) upstream of air filter | ENGINE 157, 276.9, 278 in MODEL 212, 218 | |
| 1.2 | Remove engine air intake ducts upstream of air filter | ENGINE 276.8 in MODEL 212, 218 | |
| AR09.10-P-1150ELS | |||
| 2 | Remove cold air intake (1) | ||
| 3 | Remove front section of lower engine compartment paneling | AR61.20-P-1105EW | |

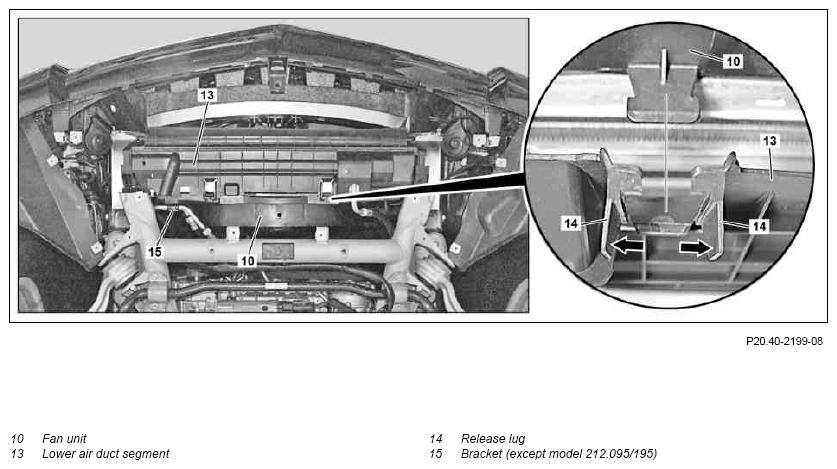

| 4 | Remove bracket (15) of oil line (from the fan unit (10) | ENGINE 157, 276 (except 276.8), 278 in MODEL 218 ENGINE 157, 278 in MODEL 212 ENGINE 276 (except 276.8) in MODEL 212 (except 212.095/195) |
|
| 5 | Press unlocking fishplates (14) apart (arrows) and unclip lower air duct segment (13) on the left and right from the fan unit (10) | ||
| 6 | Loosen front reinforcement | ENGINE 276.8 in MODEL 218 | AR62.30-P-1570EL |
| ENGINE 276.8 in MODEL 212 | AR62.30-P-1570EW | ||
| 7 | Disconnect electrical connection (9) | ||
| 8 | Detach vacuum hose (5) from radiator shutters adjuster (4) | ENGINE 157, 278 in MODEL 212 ENGINE 157, 278 in MODEL 218 ENGINE 276 in MODEL 218 without CODE 920 (Direct petrol injection with stratified charging) ENGINE 276.8 in MODEL 212 without CODE 920 (Direct petrol injection with stratified charging) ENGINE 276.9 in MODEL 212 (except 212.095/195) |
|
| 9 | Disconnect electrical connection (6) | ENGINE 157, 278 in MODEL 212 ENGINE 157, 278 in MODEL 218 ENGINE 276 in MODEL 218 without CODE 920 (Direct petrol injection with stratified charging) ENGINE 276.8 in MODEL 212 without CODE 920 (Direct petrol injection with stratified charging) ENGINE 276.9 in MODEL 212 (except 212.095/195) |
|

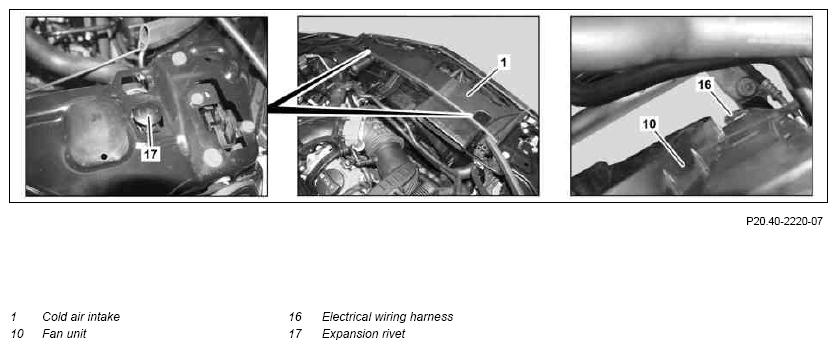

| 10 | Remove electric wiring harness (16) from fan unit (10) | ||
| 11 | Unclip air duct segment (8) from fan unit (10) | ||
| 12 | Remove left and right expansion rivet (17) | ||
| 13 | Tilt radiator unit in the upper area to the rear, unhook fan unit (10) from radiator mount and remove upwards | ||
| 14 | Install in the reverse order |
