Replace complete front end assembly together with reinforcement - AR62.30-P-1570EW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212, 207

Shown on model 212

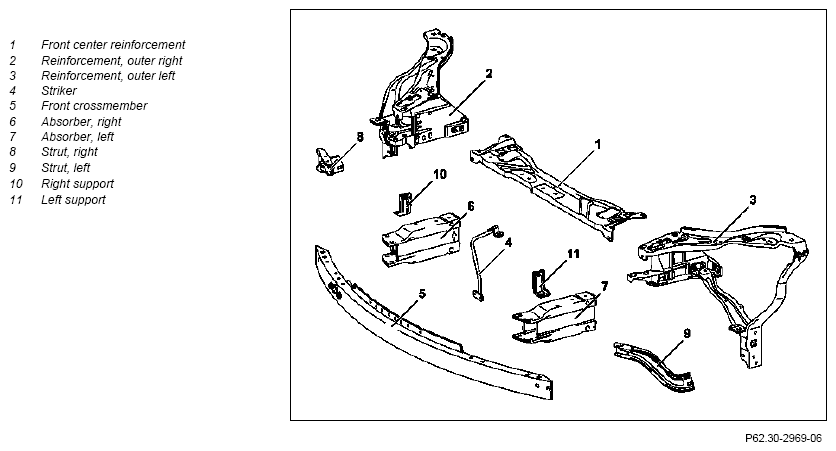

Fig 1: Front End Assembly With Reinforcement Components - Shown On Model 212 (1 Of 3)
G09977129Courtesy of MERCEDES-BENZ USA

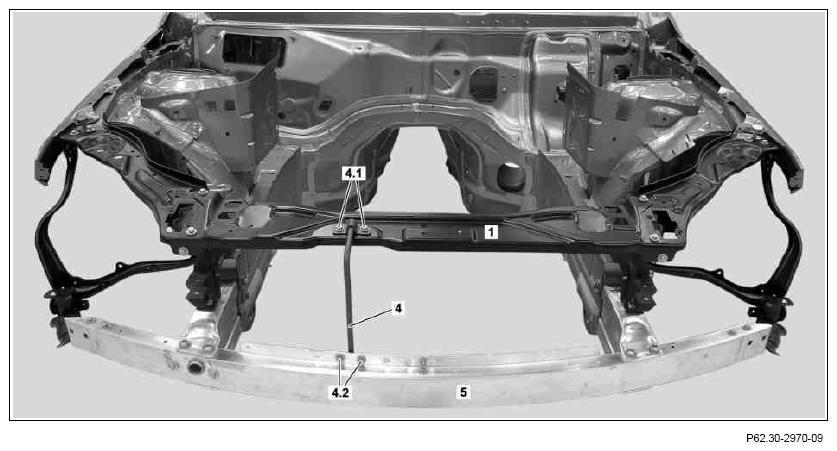

Fig 2: Front End Assembly With Reinforcement Components - Shown On Model 212 (2 Of 3)
G09977130Courtesy of MERCEDES-BENZ USA

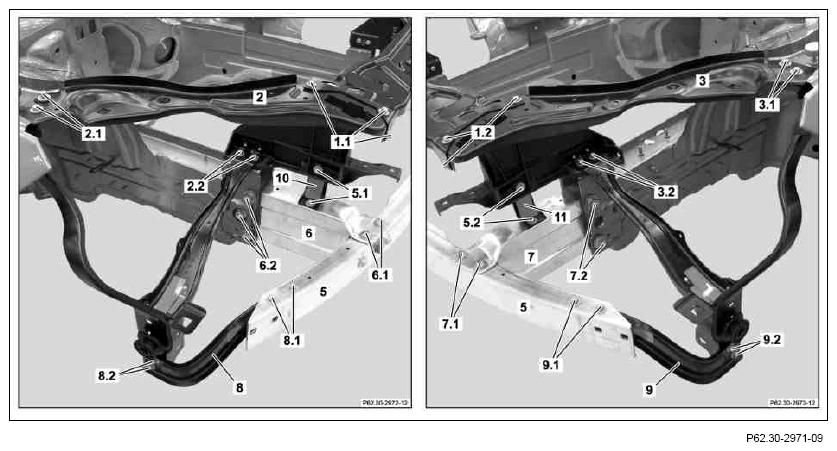

Fig 3: Front End Assembly With Reinforcement Components - Shown On Model 212 (3 Of 3)
G09977131Courtesy of MERCEDES-BENZ USA
REMOVINGINSTALLING Remove/install
DANGER Risk of death  caused by vehicle slipping or toppling off of the lifting platform. Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer. AS00.00-Z-0010-01A
DANGER Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts Always wear protective gloves when working on or near sharp and non-deburred vehicle parts.
Deburr repair panels.
AS00.00-Z-0017-01A
NOTES General information on body repair   AH60.00-N-0001-01A
1 Remove all detachable parts in repair area.
2 Unscrew bolts (4.1, 4.2) and remove striker (4)
3 Unscrew bolts (1.1, 1.2) and remove center front reinforcement (1)
4 Unscrew bolts (8.1, 8.2, 9.1, 9.2) and remove struts (8, 9) IMPORTANT On model 207 bolts (8.1 and 9.1) are located at the front of the front crossmember (5)
5 Unscrew bolts (5.1, 5.2) and remove supports (10, 11)
6 Unscrew bolts (2.1, 2.2, 3.1, 3.2) and remove outer reinforcement (2, 3)
7 Unscrew bolts (6.1, 7.1) and remove front crossmember (5) INSTALLATION IMPORTANT
Tighten bolts (6.1, 7.1) with specified torque before installing headlamp.

TORQUE SPECIFICATION Bolt, crossmember mount to absorber *BA62.30-P-1002-02G
8 Unscrew bolts (6.2, 7.2) and remove absorber (6, 7)
9 Install in the reverse order
10 Adjust gap dimensions on hoods, doors and lids Model 212 AR60.00-P-0700-01EW
SPECIAL TOOL Feeler gauge Fig 4
  *BE60.00-P-1001-01U
Model 207 AR60.00-P-0700-01EC
SPECIAL TOOL Feeler gauge Fig 4
  *BE60.00-P-1001-01W
IMPORTANT Fit headlamp unit and bumper for adjustment work.
11 Fit front end assembly with reinforcement IMPORTANT Remove bumper after adjustment work.
TORQUE SPECIFICATION Bolt, absorber mount on longitudinal member *BA62.30-P-1001-02G
TORQUE SPECIFICATION Bolt, striker bracket *BA62.30-P-1003-02G
12 Apply wax preservation to connections on body IMPORTANT After adjustment operations as well as removal and installation of front end assembly parts with reinforcement.
Preservation agent *BR00.45-Z-1003-05A
CHECK VALUES FOR GAPS

Number Designation Model 212.0/1 Model 212.2
BE60.00-P-1001-01U Gap dimension Engine hood to fender Dimension "A" mm 4 (X 1) 4 (X 1)
Engine hood to headlamp Dimension "B" mm 4 (X 1) 4 (X 1)
Engine hood to radiator grille Dimension "C" mm - -
Engine hood to bumper Dimension "D" mm 4.5 (X 1.5) 4.5 (X 1.5)
Engine hood to A-pillar Dimension "E" mm 4.5 (X 1.5) 4.5 (X 1.5)
Bumper to headlamp Dimension "F" mm 3.5 (X 1.5) 3.5 (X 1.5)
  See picture   AR60.00-P-0700-01EW AR60.00-P-0700-01EW
CHECK VALUES FOR GAPS

Number Designation Model 207.3 Model 207.4
BE60.00-P-1001-01W Gap dimension Engine hood to fender Dimension "A" mm 4 (X 1) 4 (X 1)
Engine hood to headlamp Dimension "B" mm 4 (X 1) 4 (X 1)
Engine hood to bumper Dimension "C" mm 6 (+1/-2) 6 (+1/-2)
Engine hood to A-pillar Dimension "D" mm 4.5 (+2/-1) 4.5 (+2/-1)
Bumper to headlamp Dimension "E" mm 2.5 (X 1.5) 2.5 (X 1.5)
  See picture   AR60.00-P-0700-01EC AR60.00-P-0700-01EC
FRONT END ASSEMBLY WITH FRONT REINFORCEMENT

Number Designation Model 207.3 Model 207.4
BA62.30-P-1001-02G Bolt, absorber mount on longitudinal member Stage 1 Nm 90 90
Stage 2 ∠° 90 90
BA62.30-P-1002-02G Bolt, crossmember mount on absorber Stage 1 Nm 28 28
Stage 2 ∠° 135 135
BA62.30-P-1003-02G Bolt for attaching striker   Nm 10 10
FRONT END ASSEMBLY WITH FRONT REINFORCEMENT

Number Designation Model 212
BA62.30-P-1001-02G Bolt, absorber mount on longitudinal member Stage 1 Nm 90
Stage 2 ∠° 90
BA62.30-P-1002-02G Bolt, crossmember mount on absorber Stage 1 Nm 28
Stage 2 ∠° 135
BA62.30-P-1003-02G Bolt for attaching striker   Nm 10
Fig 4: Identifying Feeler Gauge (129 589 03 21 00)
G09977132Courtesy of MERCEDES-BENZ USA
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1003-05A Cavity sealant, solvent-free (1 l container) A 000 986 72 70 05
