Remove/install Distronic sensor (DTR) - AR30.30-P-1010EW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 204, 207, 212 with CODE 233 (DISTRONIC PLUS)
Shown up to 31.5.2013
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Switch off ignition | ||
| 2.1 | Remove radiator trim | MODEL 207 up to 5/31/13 up to model year 2014 with CODE 233 (DISTRONIC PLUS) MODEL 212 with CODE 233 (DISTRONIC PLUS) |
|
| MODEL 212 up to model year 2014 with CODE 233 (DISTRONIC PLUS) | AR88.40-P-4001EW | ||
| MODEL 212 as of model year 2014 with CODE 233 (DISTRONIC PLUS) without CODE 772 (AMG body styling) without CODE 954 (AVANTGARDE) | AR88.40-P-4001EWM | ||
| MODEL 212 as of model year 2014 with CODE 233 (DISTRONIC PLUS) with CODE 772 (AMG body styling) with CODE 954 (AVANTGARDE) | AR88.40-P-4001EWN | ||
| MODEL 207 up to 5/31/13 up to model year 2014 with CODE 233 (DISTRONIC PLUS) | AR88.40-P-4001EC | ||
| 2.2 | Remove cold air suction bridge | MODEL 207 as of 6/1/13 with CODE 233 (DISTRONIC PLUS) MODEL 212 as of model year 2014 with CODE 233 (DISTRONIC PLUS) with CODE 772 (AMG body styling) with CODE 954 (AVANTGARDE) |
|
| MODEL 207 | AR88.40-P-4001EC | ||
| 2.3 | Remove intake air duct insert | MODEL 204 with CODE 233 (DISTRONIC PLUS) | |
| 3 | Remove cover (Mercedes star) on radiator trim | MODEL 204 with CODE 233 (DISTRONIC PLUS) MODEL 207 as of 6/1/13 as of model year 2014 with CODE 233 (DISTRONIC PLUS) MODEL 212 as of model year 2014 with CODE 233 (DISTRONIC PLUS) with CODE 772 (AMG body styling) with CODE 954 (AVANTGARDE) |
|

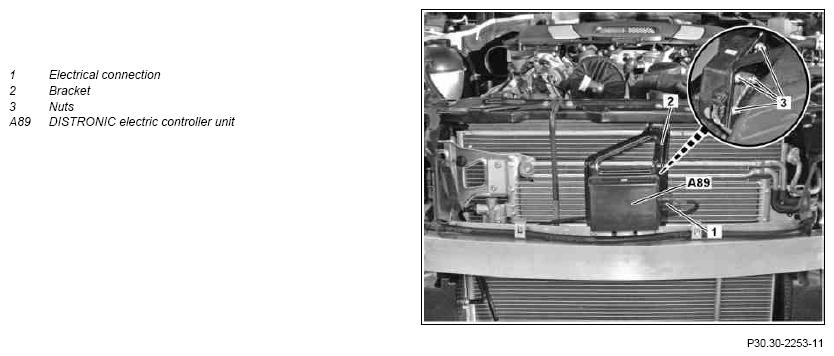

| 4 | Unlock and detach electrical connection (1) on DISTRONIC electric controller unit (A89) | ||
| 5 | Unscrew nuts (3) and remove electric controller unit DISTRONIC (A89) from bracket (2) | ||
| 6 | Install in the reverse order | ||
| 7 | Perform initialization of DISTRONIC electric controller unit (A89) with the diagnostic system | ||
| AD00.00-P-2000-04A | |||
| 8 | Perform calibration with diagnostic system | When replacing the DISTRONIC electric controller unit (A89). | |
| AD00.00-P-2000-04A | |||
| 9 | Read out fault memory using the diagnostic system and clear if necessary | ||
| AD00.00-P-2000-04A |
