Remove, replace and install rear center seat belt - AR91.40-P-0683CW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 204.0, 212.0 with CODE (287) Through-loading feature
MODEL 204.2/9, 212.2

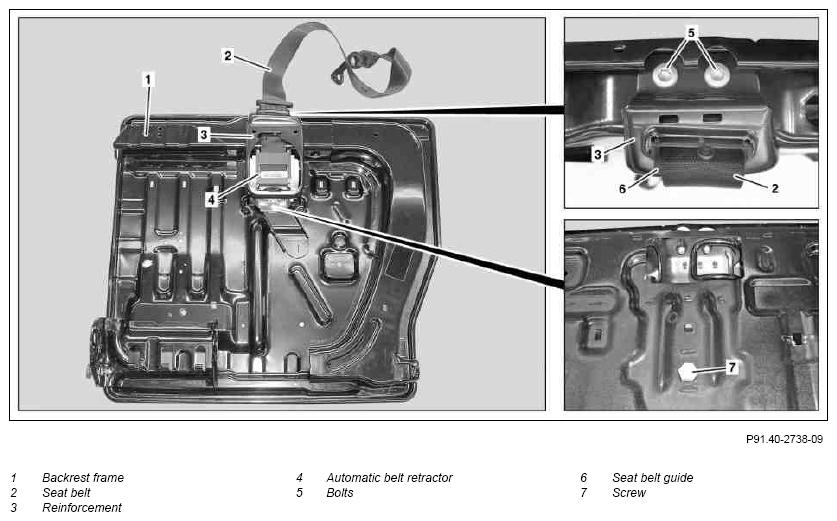

Illustrated on model 204.0
MODIFICATION NOTES
| 9.8.11 | Value modified: Bolt, reinforcement to backrest frame | Model 212 | *BA91.12-P-1003-03I |
| Remove/install | |||
| Risk of injury caused by release of spring in the automatic belt retractor is released. | Never disassemble automatic belt retractors. | AS91.00-Z-0002-01A | |
| 1 | Remove left rear seat backrest cover | ||
| Model 204.0/2/9, model 212.0 Model 212.2 |
AR91.18-P-1874CW | ||
| 2 | Unscrew screws (5) from backrest frame (1) | *BA91.12-P-1003-03I | |
| 3 | Lift reinforcement (3) and unclip belt guide (6) | ||
| 4 | Guide seat belt (2) with belt guide (6) through reinforcement (3) | ||
| 5 | Remove screw/bolt (7) from automatic belt retractor (4) | *BA91.40-P-1005-01P | |
| *BA91.40-P-1008-01Q | |||
| 6 | Detach automatic belt retractor (4) | ||
| 7 | Install in the reverse order |
REAR SEATS
| Number | Designation | Model 204 | Model 212 | |
|---|---|---|---|---|
| BA91.12-P-1003-03I | Bolt, reinforcement to backrest frame | Nm | 20 | 21 |
SEAT BELTS/EMERGENCY TENSIONING RETRACTORS
| Number | Designation | Model 204.0 | Model 204.2 | Model 204.9 | |
|---|---|---|---|---|---|
| BA91.40-P-1005-01P | Bolt to rear automatic belt retractor in rear seat backrest | Nm | 32 | 32 | 32 |
SEAT BELTS/EMERGENCY TENSIONING RETRACTORS
| Number | Designation | Model 212.0 | Model 212.2 | |
|---|---|---|---|---|
| BA91.40-P-1008-01Q | Bolt to rear automatic belt retractor in rear seat backrest | Nm | 35 | 35 |
