Remove, replace and install rear center seat belt - AR91.40-P-0683CWA
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 204.0 except CODE (287) Through-loading feature
MODEL 212.0 except CODE (287) Through-loading feature except CODE (224) Rear individual seat design
MODEL 212.1
Shown on model 204
MODIFICATION NOTES
| 5.6.09 | Value changed: Screw/bolt at rear seat belt buckle | *BA91.40-P-1015-01Q |
| Remove/install | |||
| Risk of injury caused by release of spring in the automatic belt retractor. | Never disassemble automatic belt retractors. | AS91.00-Z-0002-01A | |

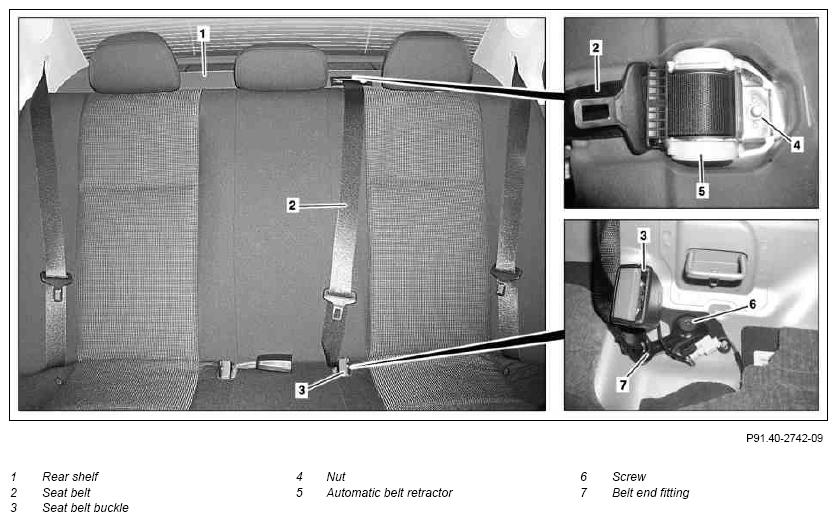

| 1 | Remove rear shelf (1) | Model 204 | AR68.30-P-4580CW |
| Model 212 | AR68.30-P-4580EW | ||
| 2 | Unscrew nut (4) at automatic belt retractor (5) | *BA91.40-P-1008-01P | |
| *BA91.40-P-1009-01Q | |||
| 3 | Remove screw/bolt (6) from seat belt buckle (3) | *BA91.40-P-1007-01P | |
| *BA91.40-P-1015-01Q | |||
| 4 | Remove seat belt buckle (3) from belt end fitting (7) | ||
| 5 | Remove seat belt (2) with automatic belt retractors (5) | ||
| 6 | Install in the reverse order |
SEAT BELTS/EMERGENCY TENSIONING RETRACTORS
| Number | Designation | Model 204.0 | |
|---|---|---|---|
| BA91.40-P-1007-01P | Screw on rear belt buckle | Nm | 32 |
| BA91.40-P-1008-01P | Nut to rear automatic belt retractor in rear shelf | Nm | 32 |
SEAT BELTS/EMERGENCY TENSIONING RETRACTORS
| Number | Designation | Model 212.0 | Model 212.1 | |
|---|---|---|---|---|
| BA91.40-P-1009-01Q | Nut to rear automatic belt retractor in rear shelf | Nm | 35 | 35 |
| BA91.40-P-1015-01Q | Screw on rear belt buckle | Nm | 40 | 40 |
