Remove/install seat belt with emergency tensioning retractor - AR91.40-P-0630CW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 204, 212, 218

Shown on model 204.0 with code (299) PRE-SAFE

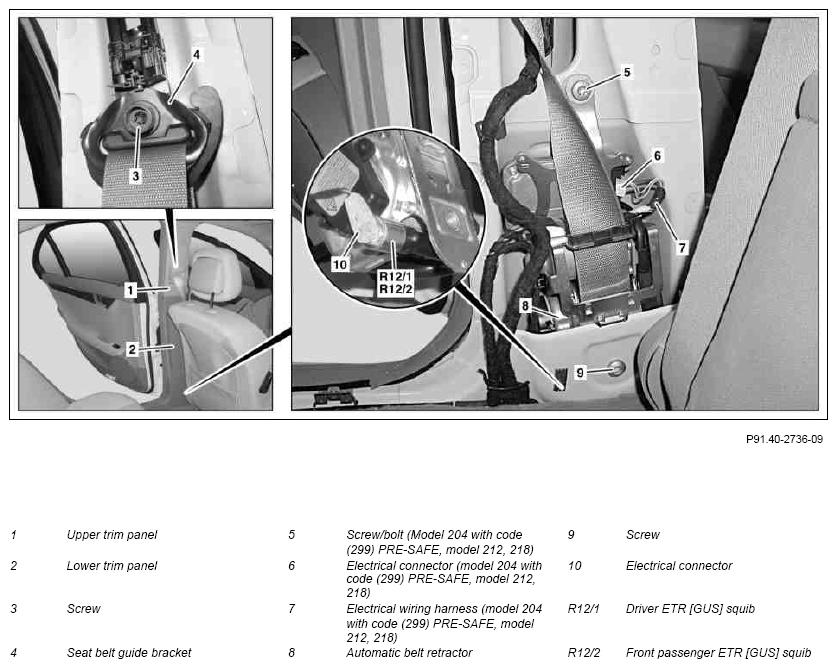

Fig 1: Seat Belt With Emergency Tensioning Retractor Remove/Install Components - Model 204.0 With Code 299
G09978067Courtesy of MERCEDES-BENZ USA

Model 204.0/2/3, 212, shown on model 204.0

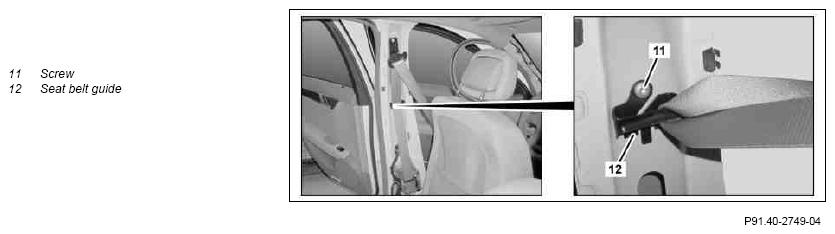

Fig 2: Seat Belt With Emergency Tensioning Retractor Remove/Install Components - Model 204.0
G09978068Courtesy of MERCEDES-BENZ USA
REMOVINGINSTALLING Remove/install
DANGER Risk of injury  caused by performing testing or repair work on airbag or emergency tensioning retractor units. Store airbag units with deployment side facing up; do not expose to temperatures greater than 100 °C. When working on these units, disconnect the power supply. AS91.00-Z-0001-01A
DANGER Risk of injury  . Injury may result when the tension in the spring in the automatic belt retractor is released. Never disassemble automatic belt retractors. AS91.00-Z-0002-01A
NOTES Notes on performing repair, body work and welding on vehicles with airbags and RTE units   AH91.00-P-0002-01M
NOTES Information on preventing damage to electronic components due to electrostatic discharge   AH54.00-P-0001-01A
IMPORTANT Assessment of airbag and belt tensioner units in accident vehicles   AH91.00-P-0006-01B
IMPORTANT Legal requirements on handling and storing airbags and emergency tensioning retractor units   AH91.00-P-0004-01A
1.1 Remove belt end fitting at left or right front seat MODEL 204.0/2/9, 212, 218
TORQUE SPECIFICATION MODEL 204.0/2/9 *BA91.40-P-1003-01P
TORQUE SPECIFICATION
MODEL 212, 218		 *BA91.40-P-1005-01Q
1.2 Remove belt end fitting at left or right B-pillar MODEL 204.3
TORQUE SPECIFICATION Bolt at front belt end fitting *BA91.40-P-1003-01P
2 Disconnect battery ground line MODEL 204 AR54.10-P-0003CW
MODEL 212, 218 AR54.10-P-0003EW
3 Remove upper paneling (1) and lower paneling (2) on B-pillar
4 Remove bolt (3) at belt guide bracket (4) TORQUE SPECIFICATION
MODEL 204		 *BA91.40-P-1002-01P
TORQUE SPECIFICATION
MODEL 212, 218.3
MODEL 218.9		 *BA91.40-P-1003-01Q
5.1 Remove bolt (11) and remove belt guide (12) MODEL 204.0/2/3, 212
TORQUE SPECIFICATION
MODEL 204		 *BA91.40-P-1010-01P
TORQUE SPECIFICATION
MODEL 212		 *BA91.40-P-1004-01Q
5.2 Route seat belt out of belt guide MODEL 218
6 Remove bolt (9) from automatic belt retractor (8) TORQUE SPECIFICATION MODEL 204 *BA91.40-P-1001-01P
TORQUE SPECIFICATION MODEL 212, 218 *BA91.40-P-1001-01Q
7.1 Remove screw/bolt (5) from automatic belt retractor (8) MODEL 204
with CODE 299 (PRE-SAFE® system)
MODEL 212
without CODE Z04 (Light armoring)
MODEL 218
TORQUE SPECIFICATION
MODEL 212
without CODE Z04 (Light armoring)
MODEL 218.3
MODEL 218.9		 *BA91.40-P-1001-01Q
TORQUE SPECIFICATION
MODEL 204		 *BA91.40-P-1001-01P
7.2 Remove screw/bolt (5) and remove protective plate MODEL 212
with CODE Z04 (Light armoring)
INSTALLATION IMPORTANT Press protective plate upward when screwing in screw/bolt (5).
TORQUE SPECIFICATION Bolt, front automatic belt retractor *BA91.40-P-1001-01Q
8 Lead automatic belt retractor (8) out of B-pillar
9 Disconnect electrical connector (10) from driver emergency tensioning retractor squib (R12/1) or front passenger emergency tensioning retractor squib (R12/2)
10 Detach electrical connector (6) and expose electrical wiring harness (7) MODEL 204
with CODE 299 (PRE-SAFE® system)
MODEL 212, 218
11 Remove seat belt with emergency tensioning retractor IMPORTANT If the seat belt with emergency tensioning retractor is replaced, the defective one must be disposed of properly:
12 Install in the reverse order
13 Connect Star Diagnosis and perform initial startup of PRE-SAFE MODEL 204
with CODE 299 (PRE-SAFE® system)
MODEL 212, 218
After replacing the seat belt with emergency tensioning retractor.
REFER TO SELF-DIAGNOSTIC SYSTEMS AD00.00-P-2000-04A
SEAT BELTS/EMERGENCY TENSIONING RETRACTORS

Number Designation MODEL 204.0 MODEL 204.2
BA91.40-P-1001-01P Screw/bolt at front automatic belt retractor Nm 32 32
SEAT BELTS/EMERGENCY TENSIONING RETRACTORS

Number Designation MODEL 204.3 MODEL 204.9
BA91.40-P-1001-01P Screw/bolt at front automatic belt retractor Nm 35 32
SEAT BELTS/EMERGENCY TENSIONING RETRACTORS

Number Designation MODEL 212.0 MODEL 212.1
BA91.40-P-1001-01Q Bolt, front automatic belt retractor Nm 35 35
SEAT BELTS/EMERGENCY TENSIONING RETRACTORS

Number Designation MODEL 212.2 MODEL 218.3
BA91.40-P-1001-01Q Bolt, front automatic belt retractor Nm 35 35
SEAT BELTS/EMERGENCY TENSIONING RETRACTORS

Number Designation MODEL 218.9
BA91.40-P-1001-01Q Bolt, front automatic belt retractor Nm 35
SEAT BELTS/EMERGENCY TENSIONING RETRACTORS

Number Designation MODEL 204.0 MODEL 204.2
BA91.40-P-1002-01P Screw on front upper belt guide fitting Nm 32 32
SEAT BELTS/EMERGENCY TENSIONING RETRACTORS

Number Designation MODEL 204.3 MODEL 204.9
BA91.40-P-1002-01P Screw on front upper belt guide fitting Nm 35 32
SEAT BELTS/EMERGENCY TENSIONING RETRACTORS

Number Designation MODEL 204.0 MODEL 204.2
BA91.40-P-1003-01P Bolt at front belt end fitting Nm 32 32
SEAT BELTS/EMERGENCY TENSIONING RETRACTORS

Number Designation MODEL 204.3 MODEL 204.9
BA91.40-P-1003-01P Bolt at front belt end fitting Nm 35 32
SEAT BELTS/EMERGENCY TENSIONING RETRACTORS

Number Designation MODEL 212.0 MODEL 212.1
BA91.40-P-1003-01Q Bolt, front seat belt guide bracket to belt height adjuster Nm 35 35
SEAT BELTS/EMERGENCY TENSIONING RETRACTORS

Number Designation MODEL 212.2 MODEL 218.3
BA91.40-P-1003-01Q Bolt, front seat belt guide bracket to belt height adjuster Nm 35 35
SEAT BELTS/EMERGENCY TENSIONING RETRACTORS

Number Designation MODEL 218.9
BA91.40-P-1003-01Q Bolt, front seat belt guide bracket to belt height adjuster Nm 35
SEAT BELTS/EMERGENCY TENSIONING RETRACTORS

Number Designation MODEL 212.0 MODEL 212.1
BA91.40-P-1004-01Q Bolt, belt guide to B-pillar Nm 35 35
SEAT BELTS/EMERGENCY TENSIONING RETRACTORS

Number Designation MODEL 212.2
BA91.40-P-1004-01Q Bolt, belt guide to B-pillar Nm 35
SEAT BELTS/EMERGENCY TENSIONING RETRACTORS

Number Designation MODEL 212.0 MODEL 212.1
BA91.40-P-1005-01Q Bolt, front belt end fitting Nm 35 35
SEAT BELTS/EMERGENCY TENSIONING RETRACTORS

Number Designation MODEL 212.2 MODEL 218.3
BA91.40-P-1005-01Q Bolt, front belt end fitting Nm 35 35
SEAT BELTS/EMERGENCY TENSIONING RETRACTORS

Number Designation MODEL 218.9
BA91.40-P-1005-01Q Bolt, front belt end fitting Nm 35
SEAT BELTS/EMERGENCY TENSIONING RETRACTORS

Number Designation MODEL 204.0 MODEL 204.2
BA91.40-P-1010-01P Bolt on B-pillar belt guide Nm 32 32
SEAT BELTS/EMERGENCY TENSIONING RETRACTORS

Number Designation MODEL 204.3 MODEL 204.9
BA91.40-P-1010-01P Bolt on B-pillar belt guide Nm 35 -
