Remove/install condenser - AR83.30-P-6540EX
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212.074/075/076/077/092/274/275/276/277/292
| Remove/install | |||
| 1 | Drain air conditioning system, then disconnect air conditioning service unit | Drain, evacuate and recharge air conditioning, check for proper operation and check for leaks |
AR83.30-P-1760CW |

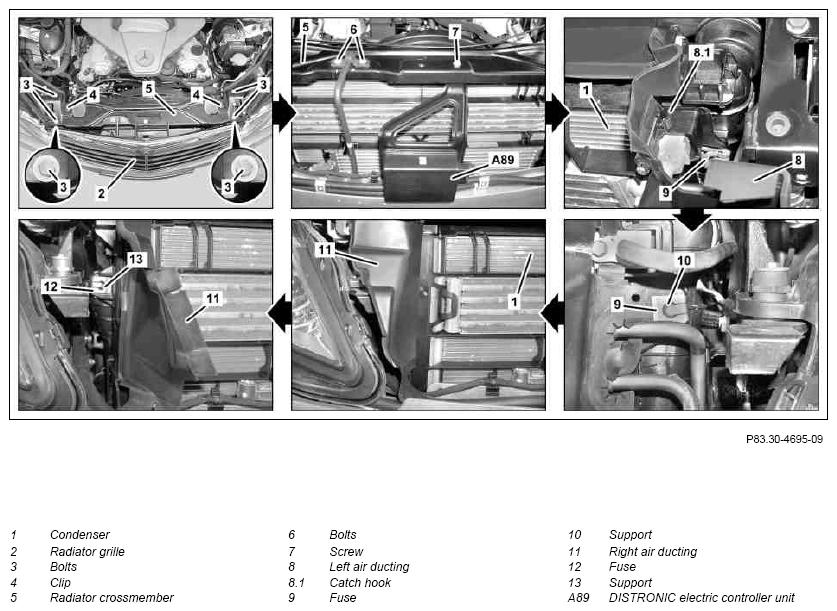

| 2 | Remove radiator grille (2) | MODEL 212.074/075/076/077/092/274/275/276/277/292 up to model year 2014 | AR88.40-P-4001EW |
| 3 | Remove front bumper | MODEL 212.074/075/076/077/092/274/275/276/277/292 as of model year 2014 | AR88.20-P-2000EWM |
| 4 | Unclip clips (4) | ||
| 5 | Remove screw/bolts (6) | *BA62.30-P-1003-02G | |
| 6 | Unscrew bolt (7) | On vehicles with code (233) DISTRONIC PLUS | |
| 7 | Remove screws/bolts (3) | ||
| 8 | Remove the radiator crossmember (5) | ||
| 9 | Unclip catch hook (8.1) and pivot left air ducting (8) forward | ||
| 10 | Remove fuse (9) at mount (10) | ||
| 11 | Pivot right air ducting (11) forward | ||
| 12 | Remove fuse (12) at mount (13) | ||
| 13 | Remove front engine compartment paneling | Remove/install bottom engine compartment paneling | AR61.20-P-1105EW |

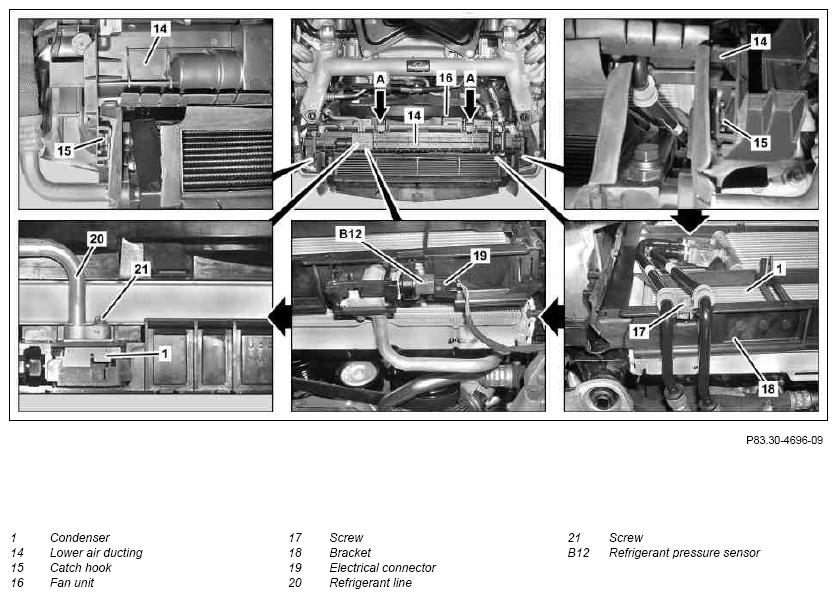

| 14 | Unclip catch hook (15), guide bottom air ducting (14) out of mounts (arrows A) at fan unit (16) and remove bottom air ducting (14) | ||
| 15 | Remove screw/bolt (17) from bracket (18) | ||
| 16 | Disconnect electrical connector (19) from refrigerant pressure sensor (B12) | ||
| 17 | Remove bolt (21) | ||

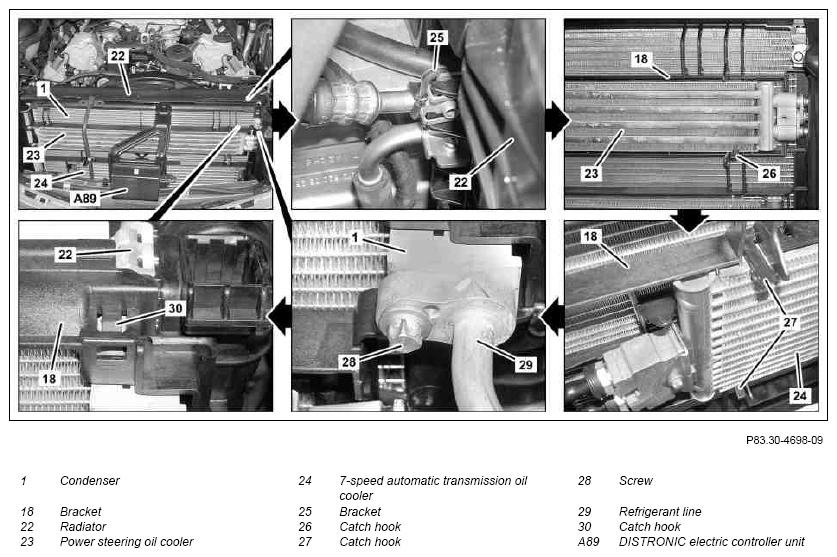

| 18 | Remove refrigerant line (20) at condenser (1), seal openings of refrigerant line (20) and condenser (1) with suitable stop plugs | ||
| 19 | Remove bracket (25) on left side of cooler (22) | ||
| 20 | Unclip power steering oil cooler (23) at catch hook (26) and remove from bracket (18) | ||
| 21 | Unclip 7-speed automatic transmission oil cooler (24) at catch hooks (27) and remove from bracket (18) | ||
| 22 | Remove bolt (28) | ||
| 23 | Remove refrigerant line (29) at condenser (1), seal openings of refrigerant line (29) and condenser (1) with suitable stop plugs | ||
| 24 | Unclip catch hook (30) and slide bracket (18) forward | ||
| 25 | Lift cooler (22) together with condenser (1) and move toward rear | ||
| 26 | Guide condenser (1) forward out of mounts (10, 13) at cooler (22) | ||
| 27 | Guide condenser (1) upwards out of side mounts at cooler (22) and remove | ||
| 28 | Install in the reverse order | ||
| 29 | Calibrate DISTRONIC system | On vehicles with code (233) DISTRONIC PLUS | |
| Remove/install Distronic sensor (DTR) MODEL 212.074/075/076/077/092/274/275/276/277/292 with CODE 233 (DISTRONIC PLUS) | AR30.30-P-1010EW |
FRONT END WITH FRONT REINFORCEMENT
| Number | Designation | MODEL 212 | |
|---|---|---|---|
| BA62.30-P-1003-02G | Bolt for attaching striker | Nm | 10 |
