Remove/install front bumper - AR88.20-P-2000EWM
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212 as of model year 2014
| Remove | |||
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by vehicle manufacturer. | AS00.00-Z-0010-01A | |
| 1 | Open engine hood | ||
| 2 | Disconnect battery ground line | With CODE U60 (Pedestrian protection) | |
| AR54.10-P-0003EW | |||
| 3 | Lift vehicle on vehicle lift | ||

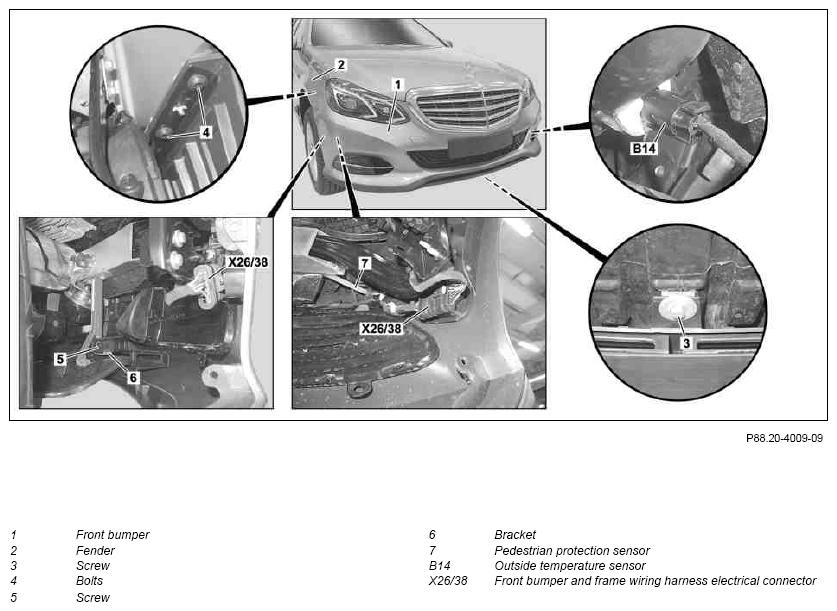

| 4 | Remove screw/bolt (3) | ||
| 5 | Remove fender liner in left and right front fender | AR88.10-P-1300ELX | |
| Fig 3 | |||
| 6 | Unscrew bolts (4) on left and right front fender (2) | ||
| 7 | Unscrew bolt (5) form left and right bracket (6) | ||
| Check | |||
| 8 | Check pedestrian protection sensor (7) on left and right | With CODE U60 (Pedestrian protection) Check freely visible points for damage of any kind (cracks, holes, breakovers, etc.) when installed. If damage is visible, always replace pedestrian sensor (7). |
|
| AR91.60-P-0950EWM | |||
| 9 | Disconnect electrical connector on frame wiring harness and front bumper (X2638) | ||
| 10 | Unclip outside temperature sensor (B14) | ||

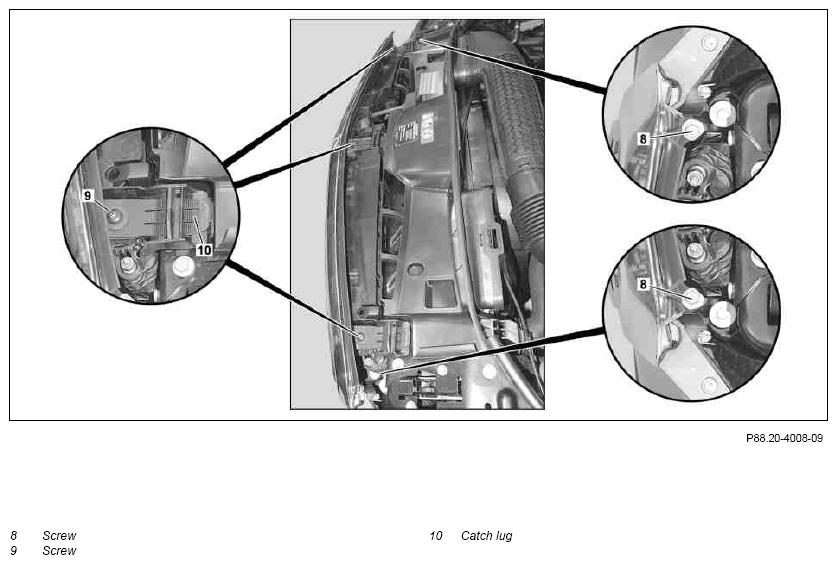

| 11 | Remove bolts (8) | ||
| 12 | Remove screw/bolts (9) | ||
| 13 | Push catch tabs (10) downward and toward front | ||
| 14 | Remove front bumper (1) | ||
| General information on the impact absorber | AH88.20-P-1000-01A | ||
If gap dimensions on front bumper (1) are adjusted: Adjust front bumper (1) |
|||
| AR88.20-P-2001EWM | |||
| AR60.00-P-0700-01EW | |||
| Gap dimension | *BE60.00-P-1006-01U | ||
| 15 | Disassemble front bumper (1) | Only when replacing front bumper (1) | |
| AR88.20-P-2050EWM | |||
| 16 | Install in the reverse order | ||
| 17 | Calibrate camera 360° camera with STAR DIAGNOSIS | MODEL 212 as of model year 2014 with CODE 501 (360 degree camera) |
|
| AD00.00-P-2000-04A | |||
| 18 | Check whether active parking assist is ready for operation | MODEL 212 as of model year 2014 with CODE 220 (PARKTRONIC) with CODE 235 (Active Parking Assist) |
CHECK VALUES FOR GAP DIMENSIONS
| Number | Designation | MODEL 212.0/1 | MODEL 212.2 | |||
|---|---|---|---|---|---|---|
| BE60.00-P-1006-01U | Gap dimension | Engine hood to headlamp | Dimension "B1" | mm | 3, 5 (±1) | 3, 5 (±1) |
| Engine hood to radiator grille/bumper | Dimension "C1" | mm | 3, 5 (±1) | 3, 5 (±1) | ||
| Offset: Engine hood to radiator grille/bumper | Dimension "C2" | mm | 1 (-0, 5/+1) | 1 (-0, 5/+1) | ||
| Bumper to headlamp, outside | Dimension "F1" | mm | 2, 5 (±1, 5) | 2, 5 (±1, 5) | ||
| Bumper to headlamp, bottom/inside outside | Dimension "F2" | mm | 2 (-1/+1, 5) | 2 (-1/+1, 5) | ||
| Picture | AR60.00-P-0700-01EW | AR60.00-P-0700-01EW | ||||
