Remove/install rear axle shaft flange and angular ball bearing - AR35.20-P-0130EW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212, 218
| Remove | |||
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| Notes on repair work on suspension components | AH00.00-P-0100-01A | ||
| 1 | Secure vehicle on vehicle lift | AR00.60-P-0100EWS | |
| 2 | Remove rear wheel | ||
| AP40.10-P-4050EW | |||

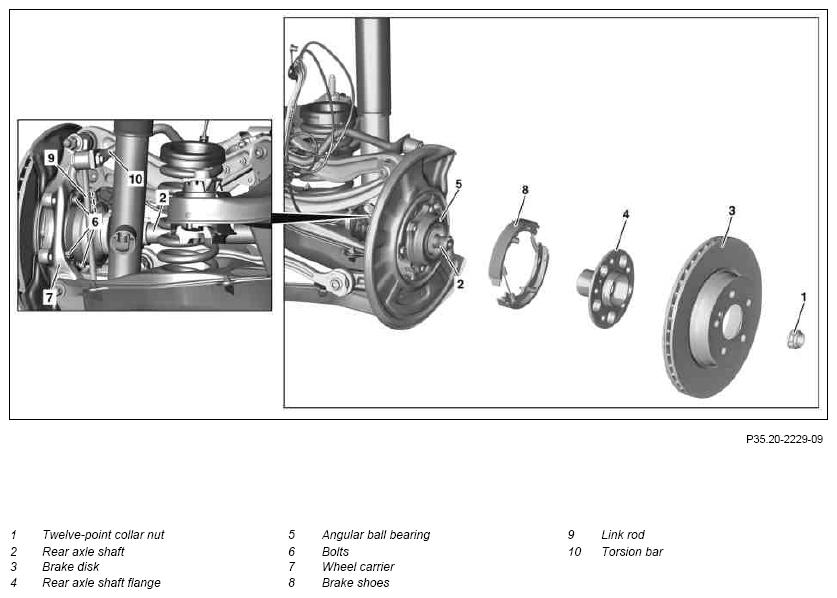

| 3 | Detach twelve-point collar nut (1) from rear axle shaft (2) | AR35.30-P-0115-01TX | |
| 4 | Remove brake disk (3) | MODEL 212 except AMG | AR42.10-P-0250EW |
| Model 218 except AMG | AR42.10-P-0220EL | ||
| MODEL 212, 218 with AMG | AR42.10-P-0225CMG | ||
| 5 | Remove parking-brake brake shoes (8) | AR42.20-P-0530EW | |
| 6 | Pull rear axle shaft flange (4) out of angular contact ball bearing (5) | AR35.20-P-0130-06SX | |
| Figure | |||
| Figure | |||
| 7 | Detach link rod (9) from torsion bar (10) | ||
| 8 | Using transmission jack and transmission platform, raise wheel carrier (7) until the rear axle shaft (2) is approximately horizontal | ||
| 9 | Press the rear axle shaft (2) as far as possible out of the angular contact ball bearing (5) | ||
| 10 | Detach angular contact ball bearing (5) from wheel carrier (7) | ||
| 11 | Clean water drain in wheel carrier (7) | AR35.20-P-0115-03CW | |
| 12 | Pull bearing inner race off the rear axle shaft flange (4) | AR35.20-P-0130-02TX | |
| Figure | |||
| Figure | |||
| Figure | |||
| Install | |||
| 13 | Mount angular contact ball bearing (5) on wheel carrier (7) | ||
| *BA35.20-P-1001-06D | |||
| 14 | Press rear axle shaft (2) into angular contact ball bearing (5) | ||
| 15 | Lower wheel carrier (7) | ||
| 16 | Mount link rod (9) on stabilizer bar (10) | *BA32.20-P-1002-04N | |
| 17 | Pull rear axle shaft flange (4) into angular contact ball bearing (5) | AR35.20-P-0130-07SX | |
| Figure | |||
| Figure | |||
| 18 | Install parking-brake brake shoes (8) | AR42.20-P-0530EW | |
| 19 | Install brake disk (3) | MODEL 212 except AMG | AR42.10-P-0250EW |
| Model 218 except AMG | AR42.10-P-0220EL | ||
| MODEL 212, 218 with AMG | AR42.10-P-0250CMG | ||
| 20 | Mount and secure twelve-point collar nut (1) on rear axle shaft (2) | AR35.30-P-0115-01TX | |
| *BA35.30-P-1001-01J | |||
| 21 | Install rear wheel | ||
| AP40.10-P-4050EW |
REAR AXLE SHAFT
| Number | Designation | MODEL 212 | MODEL 218 | |||
|---|---|---|---|---|---|---|
| BA35.30-P-1001-01J | Collar nut, rear axle shaft to rear axle shaft flange | self-locking | Nm | 350 | 350 | |
| not self-locking | Stage 1 | Nm | 170 | - | ||
| Stage 2 | ∠° | 45 | - | |||
REAR AXLE TORSION BAR
| Number | Designation | MODEL 212 | MODEL 218 | |
|---|---|---|---|---|
| BA32.20-P-1002-04N | Nut, link rod to stabilizer bar | Nm | 50 | 40 |
HUB
| Number | Designation | MODEL 212 | MODEL 218 | |
|---|---|---|---|---|
| BA35.20-P-1001-06D | Wheel bearing to wheel carrier | Nm | 70 | 70 |
