Clean water drain in wheel carrier - AR35.20-P-0115-03CW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 172, 204, 205, 207, 211, 212, 213, 216, 217, 218, 219, 221, 222, 230, 231, 253

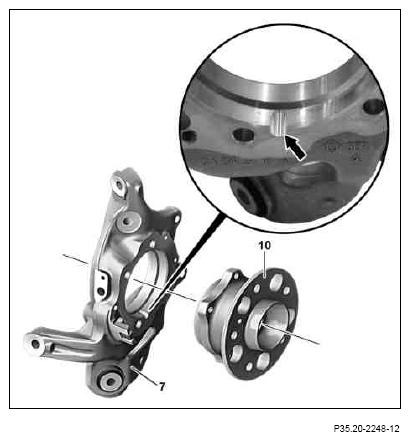

Due to dirt deposits in the groove (arrow), water that has penetrated between the steering knuckle and wheel bearing cannot flow away.
As a result damage to the wheel bearing can occur.
- Clean groove (arrow) in steering knuckle (7) after removing wheel bearing with rear axle shaft flange (10).
