Remove/install brake shoes of parking brake - AR42.20-P-0530EW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 207, 212, 218
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Notes on repairs to brake system | AH42.00-P-0003-01A | ||
| Remove/install | |||

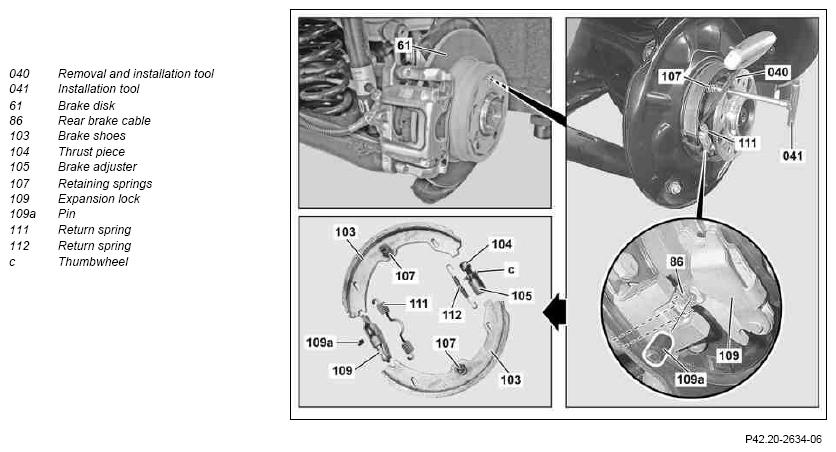

| 1 | Remove brake disk (61) | MODEL 207, 212 (except 212.074/075/076/077/092/274/275/276/277/292) | AR42.10-P-0250EW |
| MODEL 218 (except 218.374/375/376/392/974/975/976/992) | AR42.10-P-0220EL | ||
| MODEL 212.074/075/076/077/092/274/275/276/277/292 MODEL 218.374/375/376/392/974/975/976/992 |
AR42.10-P-0250CMG | ||
| 2 | Unhook retracting spring (111) using removal and installation tool (040) | ||
| Fig 3 | |||
| 3 | Remove retaining springs (107) with installation tool (041) | ||
| Fig 2 | |||
| 4 | Remove brake shoes (103) with brake adjuster (105) and retracting spring (112) | ||
| 5 | Remove retracting spring (112) and brake adjuster (105) | Turn back brake adjuster (105) on adjustment wheel (c) and install so that the thrust piece (104) makes contact with the upper brake shoe (103). |
|
| Paste, hot lubrication 1 kg, DBL 6879.20 | *BR00.45-Z-1005-06A | ||
| 6 | Fold up expansion lock (109) and push pin (109a) out of expansion lock (109) and rear brake cable (86) | ||
| Paste, hot lubrication 1 kg, DBL 6879.20 | *BR00.45-Z-1005-06A | ||
| Check | |||
| 7 | Check brake shoes (103) and friction surface in brake disk (61) for damage and wear | In event of damaged or worn brake shoes (103) or damage or worn friction surface: ↓ Replace brake shoes (103), retracting springs (111, 112), retaining springs (107) and brake disk (61). |
|
| 8 | Check expansion lock (109) for ease of movement and damage | In event of sluggishness or damage: ↓ Replace expansion lock (109). |
|
| 9 | Check front brake cable, center brake cable and rear brake cable (86) of parking brake for ease of movement and chafe marks | MODEL 207, 212, 218 In event of sluggishness or damage: ↓ Replace affected front brake cable or center brake cable or rear brake cable (86). |
|
| Remove/install front brake control cable MODEL 207 |
AR42.20-P-0520CW | ||
| Remove/install front brake control cable MODEL 212 (except 212.095/098/195/298), 218 |
AR42.20-P-0520EW | ||
| Remove/install center brake cable MODEL 207 |
AR42.20-P-0523CW | ||
| Remove/install center brake cable MODEL 212, 218 |
AR42.20-P-0523EW | ||
| Remove/install rear brake cable (86) MODEL 207, 212, 218 |
AR42.20-P-0525EW | ||
| 10 | Install in the reverse order | ||
| 11 | Adjust parking brake | AR42.20-P-0540EW | |
| Risk of death caused by limbs being caught or crushed by rotating parts when performing tests on the brake test stand | Never leave the vehicle unattended on the rollers except in an emergency. Ensure that no one is under the vehicle or near rotating parts during testing. In case of emergency, use the EMERGENCY OFF switch to shut down test stand. | AS42.00-Z-0001-01A | |
| 12 | Bed in the parking-brake brakes | ||
| Notes on the evaluating and interpreting brake tests on test stands | AH42.00-P-0004-01A | ||
| AP42.20-P-4290-01BA | |||
| 13 | Carry out brake test on the test stand | ||
| AP42.00-P-4290BA |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1005-06A | Paste, hot lubrication 1 kg, DBL 6879.20 | A 000 989 76 51 |
