Pull rear axle shaft flange out of angular contact ball bearing - AR35.20-P-0130-06SX

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 172, 204, 207, 212, 217, 218, 222, 231

MODEL 216 (except 216.379)

MODEL 221 (except 221.179) without CODE Z07 (Top protection)

Fig 1: Identifying Puller (211 589 01 33 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Press (202 589 04 43 10)

Courtesy of MERCEDES-BENZ USA

Use the following special tools: puller and press (04)

Position support (01) behind rear axle shaft flange (1).
Screw retaining bolts (03) into the rear axle shaft flange (1).
Push guide (05) forwards until the guide pins (02) are fixed in the support (01).
Insert press (04) and pull rear axle shaft flange (1) out of angular contact ball bearing (2) by turning the spindle (arrow).

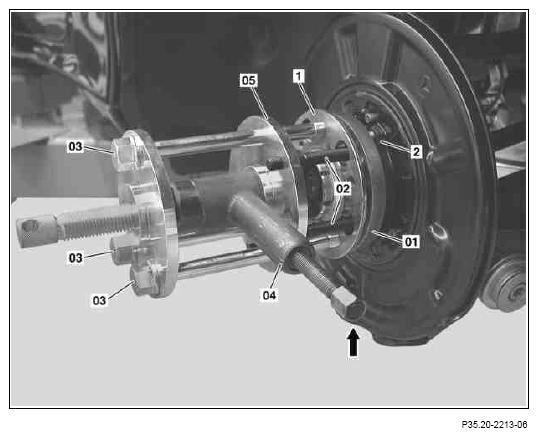

Fig 3: Pulling Rear Axle Shaft Flange Out Of Angular Contact Ball Bearing
Courtesy of MERCEDES-BENZ USA
