Pull inner bearing race off rear-axle shaft flange - AR35.20-P-0130-02TX

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 172, 204, 207, 211, 212, 216, 218, 219, 231 (except, 216.379)

MODEL 221 (except 221.179)

MODEL 221 except CODE (Z07) Top protection

MODEL 230 except CODE (P99) Special model "AMG Black Series"

Fig 1: Identifying Puller (001 589 50 33 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Thrust Piece (124 589 02 34 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Chuck (140 589 01 34 00)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Chuck (211 589 02 34 00)

Courtesy of MERCEDES-BENZ USA

Clamp rear axle shaft flange (1) in vise.
Use protective jaws for vise.
Pry protective ring (3) off bearing inner race (2).
Mount thrust piece (04) on rear axle shaft flange (1).

Fig 5: Prying Protective Ring Off Bearing Inner Race
Courtesy of MERCEDES-BENZ USA
Screw collet (02) onto puller (01) and tighten.
With model 231 use clamping pliers (02) 140 589 01 34 00.
Mount puller (01) onto bearing inner race and clamp securely into place.
Screw in thrust spindle (03) and pull bearing inner race off rear axle shaft flange (1) using puller (01).

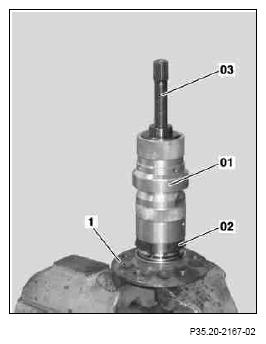

Fig 6: Pulling Bearing Inner Race Off Rear Axle Shaft Flange
Courtesy of MERCEDES-BENZ USA
