Retrofit mud flaps - AZ88.30-P-0003EW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212.0 (except 212.074/077/092), 212.1, 212.2 (except 212.274/277/292) without CODE 772 (AMG styling package - front spoiler, side skirts and rear apron) without CODE 950 (AMG sport package)

Shown on model 212.0

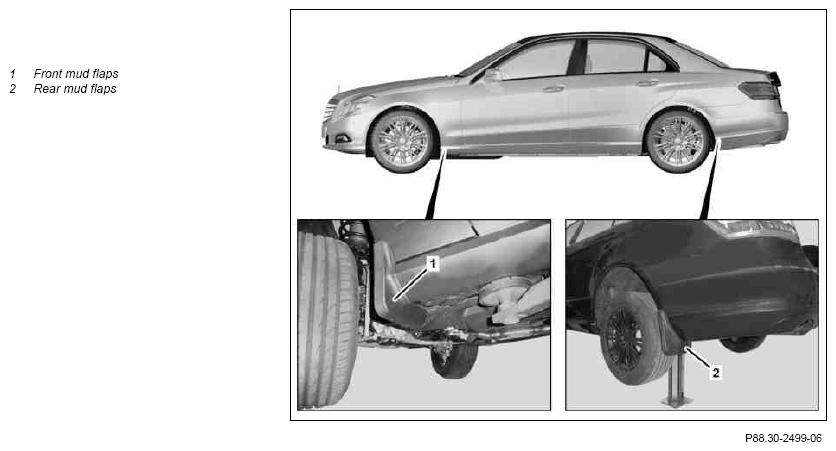

Fig 1: Front And Rear Mud Flaps

Courtesy of MERCEDES-BENZ USA

	Install
	Risk of death caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by vehicle manufacturer.	AS00.00-Z-0010-01A
1	Lift vehicle on vehicle lift		AS00.00-Z-0010-01A
	Risk of explosion caused by paint vapors igniting. Risk of poisoning caused by inhaling paint vapors.	No smoking! No open fire! Use respiratory protection, protective clothing, gloves, safety glasses and skin cream. Ensure that the area is well ventilated.	AS98.00-Z-0002-01A
2	Paint front mud flap (1)		AZ88.30-P-0003-01EW
2	Paint front mud flap (1)	Clarify whether customer wants to paint front mud flap (1). Should this not be the case, do not perform this operation step.	AZ88.30-P-0003-01EW
	Risk of explosion caused by paint vapors igniting. Risk of poisoning caused by inhaling paint vapors.	No smoking! No open fire! Use respiratory protection, protective clothing, gloves, safety glasses and skin cream. Ensure that the area is well ventilated.	AS98.00-Z-0002-01A
3	Paint rear mud flap (2)		AZ88.30-P-0003-02EW
3	Paint rear mud flap (2)	Clarify whether customer wants to paint rear mud flap (2). Should this not be the case, do not perform this operation step.	AZ88.30-P-0003-02EW
	Risk of explosion from pressurized spray cans	Protect cans from direct sunlight and temperatures above 50 °C	AS00.00-Z-0015-01A
	Risk of explosion and poisoning caused by solvent vapors and gasses. Risk of injury to skin and eyes when working with anticorrosion agents	Never spray corrosion protection on flames or hot objects and keep well away from all potential sources of ignition. Use only in well-ventilated areas; wear respiratory protection.	AS97.00-Z-0001-01A
4	Retrofit front mud guard (1)		AZ88.30-P-0003-03EW
		Cavity preservation, solvent-free (1 l container)	*BR00.45-Z-1003-05A
		Cleaner	*BR00.45-Z-1025-04A
5	Retrofit rear mud guard (2)	Up to model year 2014	AZ88.30-P-0003-04EW
		As of model year 2014	AZ88.30-P-0003-04EWM
		Cleaner Rechargeable screwdriver, rechargeable drill	*BR00.45-Z-1025-04A
6	Lower vehicle with lifting platform

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1003-05A	Cavity preservation, solvent-free (1 l container)	A 000 986 72 70 05
BR00.45-Z-1025-04A	Cleaner	A 005 989 19 71

PARTS ORDERING NOTE

Part no.	Designation	Quantity
KG 98	Outer detachable parts	1
