Retrofit front mud guards - AZ88.30-P-0003-03EW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212.0 (except 212.074/077/092), 212.1, 212.2 (except 212.274/277/292) without CODE 772 (AMG styling package - front spoiler, side skirts and rear apron) without CODE 950 (AMG sport package)
Work procedure shown on left side of vehicle.

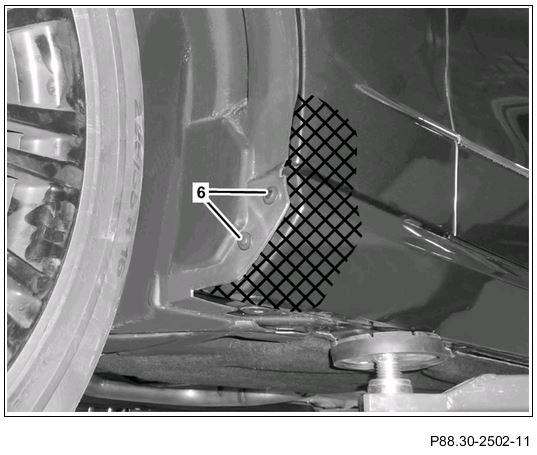

- Clean front fender in crosshatched area with specified cleaning agent.
Front fender must be dry, free of dust and grease in cross-hatched area.
- Remove expansion rivets (6) from fender liner.

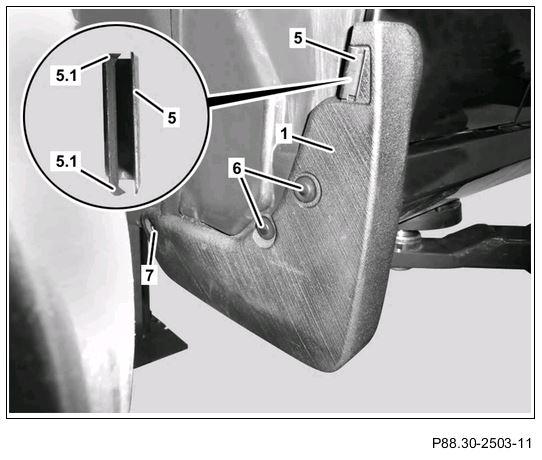

- Remove protective foil on adhesive strips on front mud guards (1) at corners, as shown in figure and position so that ends of protective foil extend beyond outer edge of front mud guards (1).
- Position front mud guard (1) on front fender as per picture.
- Install expansion rivets (6) in fender liner.
- Screw in self-tapping sheet metal screw (7).
- Install retaining clips (5).
Ensure that the retaining clip (5) is installed so that the barbs (5.1) can reach into the front mud guard (1). If this is not observed, the paint on the fender can be damaged and corrosion can occur.

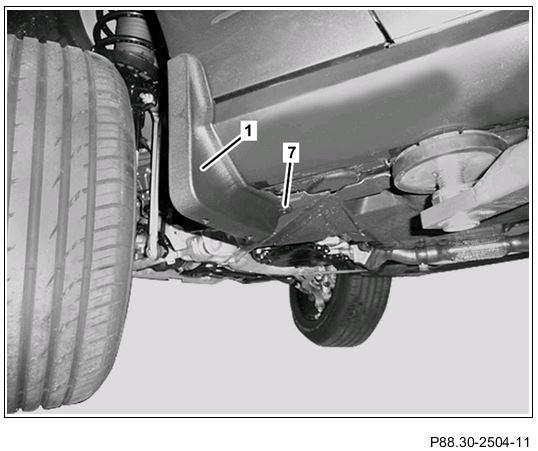

- Screw in tapping sheet metal screw (7) from bottom.
- Remove entire protective foil from adhesive strips on front mud guard (1) and uniformly press front mud guard (1) in area of adhesive strips against front fender.
- Protect inner front fender edge against corrosion in area of clips on front mud guard (1) with preservation agent.
