Paint front mud guards - AZ88.30-P-0003-01EW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212.0 (except 212.074/077/092), 212.1, 212.2 (except 212.274/277/292) except CODE 772 (AMG styling package - front spoiler, side skirts and rear apron) except code 950 (AMG Sports package)

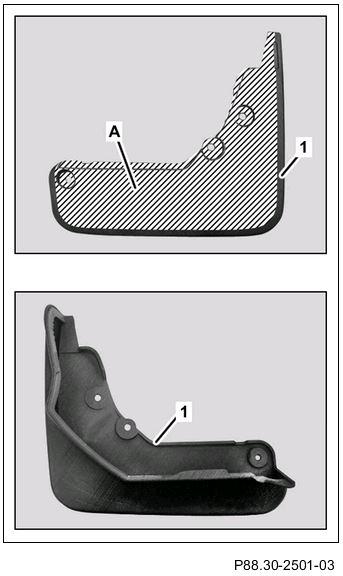

Fig 1: Front Mud Guard

Courtesy of MERCEDES-BENZ USA

Use only paint and paint system approved by Daimler AG.

Mask cross-hatch pattern (A) on contour edge of front mud guards (1), according to figure.
Ensure that no paint or paint fog gets onto the cross-hatch pattern (A) of the front mud guards (1).
Pretreat front mud guards (1) according to Daimler AG painting guidelines and paint outside of front mud guards (1) to match vehicle color.
Outside of new front mud guards (1) is already primed transparently.
Remove masking tape from front mud guards (1) when the paint is cured.
