Retrofit rear mud guards - AZ88.30-P-0003-04EWM

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212.0 (except 212.074/077/092) as of 4/14/13, 212.1 as of 4/14/13, 212.2 (except 212.274/277/292) as of 4/14/13 as of model year 2014 without CODE 772 (AMG styling package - front spoiler, side skirts and rear apron) without CODE 950 (AMG sport package)

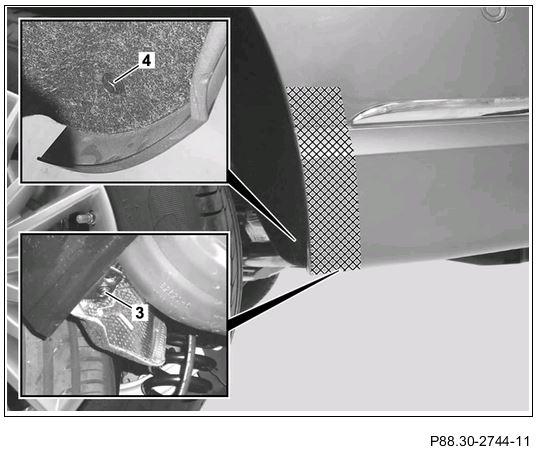

Fig 1: Fender Liner Sheet Metal Screws

Courtesy of MERCEDES-BENZ USA

The following steps are shown on the left side of the vehicle on model 212.2. Install on the right side of vehicle as well as on model 212.0/1 in the same manner.

Clean rear bumper in cross-hatched area with specified cleaning agent.
Rear bumper must be dry, free of dust and grease in cross-hatched area.
Unscrew sheet metal screws (3, 4) from fender liner and read bumper.
On vehicle with single-pipe exhaust system an expansion rivet is installed in addition on the right side of the vehicle in the area below the sheet metal screw (4); it must also be removed.

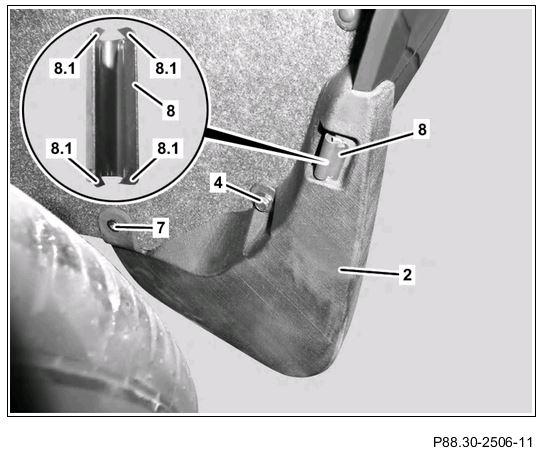

Fig 2: Rear Mud Guards, Screws And Clips

Courtesy of MERCEDES-BENZ USA

Loosen protective foil on adhesive strips on rear mud guards (2) from corners and position so that ends of protective foil extend beyond outer edge of rear mud guards (2).
Do not remove protective foil on adhesive strips completely.
Position rear mud guards (2) on rear bumper as shown in figure.
Screw sheet metal screws (4) into fender liner.
Screw in self-tapping sheet metal screw (7).
On vehicles with single-pipe exhaust system, install the previously removed expansion rivet on the right side of the vehicle instead of the self-tapping sheet metal screw (7).
Position rear mud guards (2) on rear fender as shown in figure and fasten with clips (8).
A barb (8.1) is present on the clips (8) for the rear mud guards (2) on both sides.

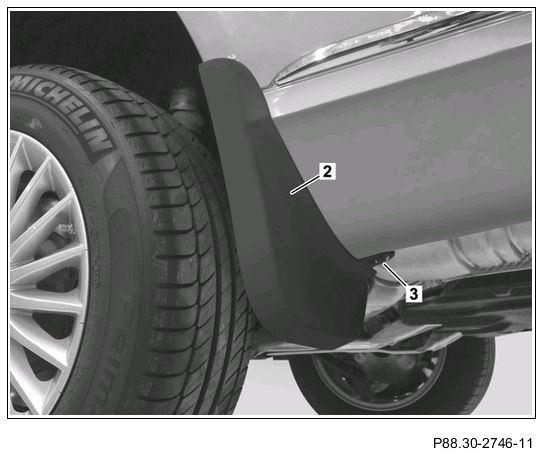

Fig 3: Rear Mud Guards And Screw

Courtesy of MERCEDES-BENZ USA

Screw sheet metal screw (3) into rear bumper.
Remove entire protective foil from adhesive strips on rear mud guards (2) and uniformly press adhesive strips against rear bumper (2).
