Remove/install alternator - AR15.40-P-5032OGE
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINES 642 in MODELS 207, 212, 218
| Remove/install | |||
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer. | AS00.00-Z-0010-01A | |
| 1 | Disconnect battery ground line | AR54.10-P-0003EW | |
| 2 | Remove engine trim panel | ||
| 3 | Remove cold air suction bridge | ||
| 4 | Remove right and left engine air intake duct upstream of air filter | ||
| 5 | Remove right air filter housing | AR09.10-P-1150SXI | |
| 6 | Remove fan unit | Model 207 | AR20.40-P-5050CW |
| Model 212, 218 | AR20.40-P-5050EW | ||
| 7 | Remove engine charge air channel upstream of charge air cooler | AR09.41-P-8623OGE | |
| 8 | Remove poly-V belt | AR13.20-P-0001OGE | |
| 9 | Remove throttle valve actuator | Model 207, 212 | AR09.41-P-1321SXI |
| 10 | Remove bottom part of noise encapsulation | AR94.30-P-5300EW | |

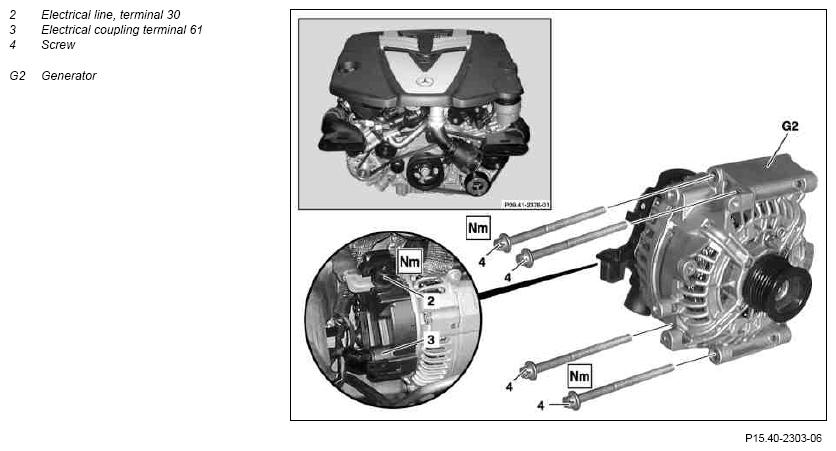

| 11 | Detach bracket for steering line on alternator (G2) and on front axle carrier | Model 207, 212 | |
| 12 | Detach electrical clutch for clamping device 61 (3) from below | ||
| 13 | Remove bolts (4) | ||
| *BA15.40-P-1001-01D | |||
| 14 | Disconnect electric cable circuit 30 (2) | *BA15.40-P-1002-01D | |
| 15 | Take alternator (G2) down and out | ||
| 16 | Install in the reverse order | ||
| 17 | Read out and erase fault memory using STAR DIAGNOSIS | AD00.00-P-2000-04A |
ALTERNATOR
| Number | Designation | ENGINE 642 | |
|---|---|---|---|
| BA15.40-P-1001-01D | Bolt, alternator to timing case cover | Nm | 20 |
| BA15.40-P-1002-01D | Nut, circuit B+ to alternator | Nm | 15 |
