Remove/install throttle valve actuator - AR09.41-P-1321SXI

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 642 in MODEL 207, 212, 221

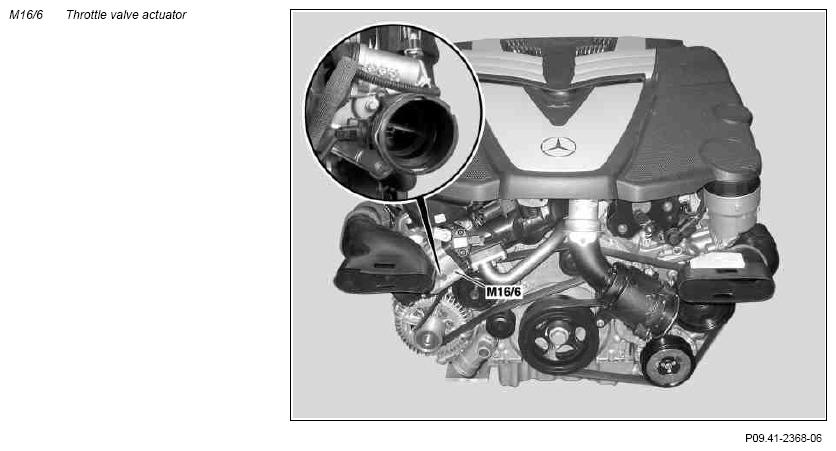

Fig 1: Throttle Valve Actuator
G09974914Courtesy of MERCEDES-BENZ USA
REMOVINGINSTALLING Remove/install
1 Remove engine cover
2 Remove noise damper downstream of charge air cooler Model 221 AR09.40-P-6925SXI
TORQUE SPECIFICATION Noise silencer downstream of charge air cooler to mixing chamber *BA09.41-P-1007-01J
3 Remove charge air hose downstream of the charge air cooler   AR09.41-P-8625SXI
4 Remove right air filter housing   AR09.10-P-1150SXI
5 Remove right shield on exhaust manifold Model 221
6 Loosen bolts on right shield Model 207, 212
IMPORTANT Loosen bolt on bracket and shield on cylinder head. It is not necessary to remove the shield.
7 Disconnect electrical plug connector on throttle valve actuator (M16/6)
8 Remove engine charge air duct downstream of charge air cooler Model 207, 212 AR09.41-P-8624OGE
Model 221 AR09.41-P-8624SXI
TORQUE SPECIFICATION Engine charge air duct downstream of charge air cooler to throttle valve actuator *BA09.41-P-1005-01J
9 Remove holder on throttle valve actuator (M16/6) Model 221
IMPORTANT Bracket, throttle valve actuator to cylinder head *BA09.41-P-1006-01J
10 Remove screw/bolt from bracket on throttle valve actuator (M16/6) Model 207, 212
IMPORTANT It is not necessary to remove the bracket.
TORQUE SPECIFICATION Bracket, throttle valve actuator to cylinder head *BA09.41-P-1006-01J
11 Remove bolts on throttle valve actuator (M16/6) TORQUE SPECIFICATION Throttle valve actuator to mixing chamber *BA09.41-P-1008-01J
12 Take out throttle valve actuator (M16/6) INSTALLATION NOTES Replace seal in order to achieve smooth running of the engine.
13 Install in the reverse order
CHARGE AIR PIPE/CHARGE AIR COOLING

Number Designation Engine 642
BA09.41-P-1005-01J Engine charge air duct downstream of charge air cooler
to throttle valve actuator		 Nm 9
BA09.41-P-1006-01J Bracket, throttle valve actuator to cylinder head Nm 9
BA09.41-P-1007-01J Silencer downstream of charge air cooler to mixing chamber Nm 9
BA09.41-P-1008-01J Throttle valve actuator on mixing chamber Nm 5
