Remove/install engine charge air duct upstream of charge air cooler - AR09.41-P-8623OGE
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 642 in MODEL 207, 212, 218

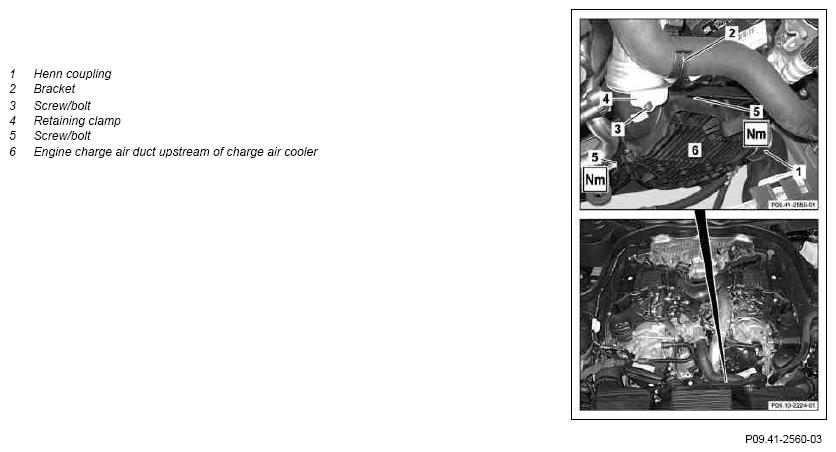

Shown on model 212
| Remove/install | |||
| 1 | Remove engine cover | ||
| 2 | Remove cover for belt drive | ||
| 3 | Remove fan unit | MODEL 218, 212, 207 | AR20.40-P-5050EW |
| 4 | Remove engine charge air hose upstream of charge air cooler at the engine charge air duct upstream of charge air cooler (6) | AR09.41-P-1311-01AL | |
Thoroughly clean connections, check sealing rings and catch springs for damage and correct seating; replace if necessary. Leaks can occur otherwise. |
|||
| 5 | Detach coolant hose out of bracket (2) | ||
| 6 | Unscrew screw/bolt (3) | ||
| 7 | Remove retaining clamp (4) | ||
| 8 | Remove screw/bolts (5) | *BA09.41-P-1003-01J | |
| *BA09.41-P-1002-01J | |||
| 9 | Remove engine charge air channel upstream of charge air cooler (6) | ||
| 10 | Install in the reverse order |
CHARGE AIR PIPE/CHARGE AIR COOLING
| Number | Designation | ENGINE 642 | |
|---|---|---|---|
| BA09.41-P-1002-01J | Engine charge air duct upstream of charge air cooler to bracket | Nm | 6 |
CHARGE AIR PIPE/CHARGE AIR COOLING
| Number | Designation | ENGINE 642 | |
|---|---|---|---|
| BA09.41-P-1003-01J | Engine charge air duct upstream of charge air cooler to oil filter housing | Nm | 12 |
