Remove/install alternator - AR15.40-P-5032ELB
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 157, 278 in MODEL 212, 218
ENGINE 278 in MODEL 207
Shown on model 218.373
| Remove/install | |||
| 1 | Detach ground line from battery | AR54.10-P-0003EW | |
| Notes on battery | AH54.10-P-0001-01A | ||
| 2 | Remove lower engine compartment paneling | AR61.20-P-1105EW | |
| 3 | Drain coolant | ENGINE 157 in MODEL 212, 218 with TRANSMISSION 722.97 | AR20.00-P-1142EL |
| 4 | Detach coolant lines from coolant pump | ENGINE 157 in MODEL 212, 218 with TRANSMISSION 722.97 | |
| 5 | Remove fan unit | ENGINE 278 in MODEL 207 | AR20.40-P-5050CW |
| ENGINE 157, 278 in MODEL 212, 218 | AR20.40-P-5050EL | ||
| 6.1 | Remover radiator package | ENGINE 157 in MODEL 212, 218 with TRANSMISSION 722.97 | |
| AR20.20-P-3865ELB | |||
| 6.2 | Attach radiator guard plate | ENGINE 278 in MODEL 207, 212, 218 | |
| WF58.50-P-0110-01A | |||
| 7 | Remove poly-V belt | AR13.20-P-0001ELB | |
| 8 | Detach rack-and-pinion steering from front axle carrier and lower | ENGINE 157 in MODEL 212 with TRANSMISSION 722.97 with CODE 211 (Direct-Steer system) ENGINE 157 in MODEL 218 with TRANSMISSION 722.97 |
AR46.20-P-0600EL |

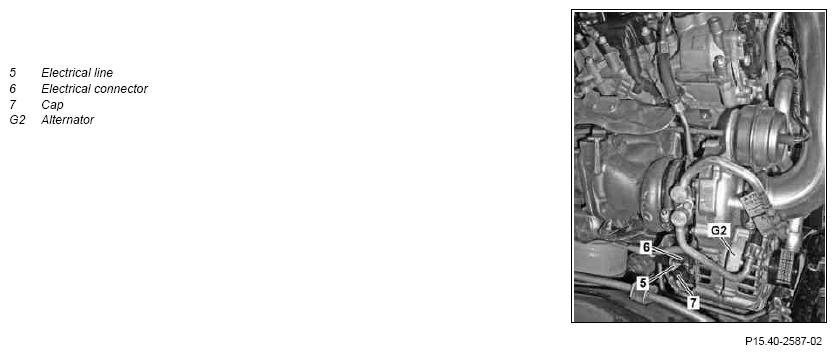

| 9 | Disconnect electrical connection (6) | ||
| 10 | Remove cap (7), unscrew nut and remove electrical line (5) from alternator (G2) | *BA15.40-P-1002-01F | |

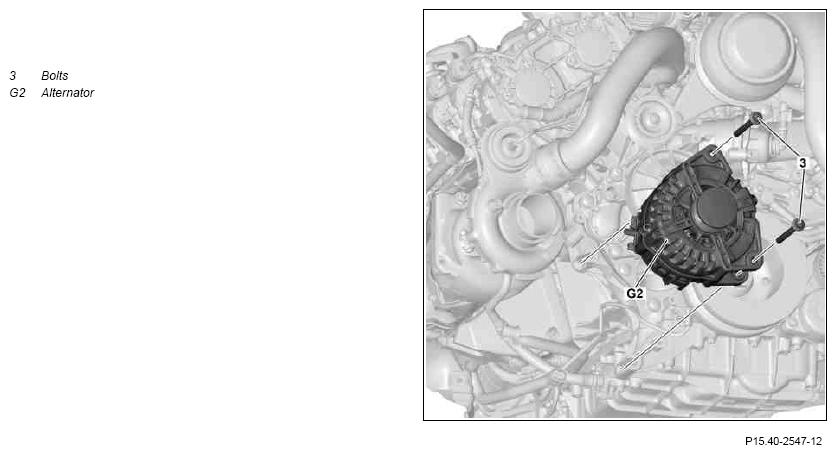

| 11 | Remove screw/bolts (3) of alternator (G2) | *BA15.40-P-1001-01F | |
| 12 | Take alternator (G2) down and out | ||
| 13 | Install in the reverse order | ||
| 14 | Check cooling system for leaktightness | ENGINE 157 in MODEL 212, 218 with TRANSMISSION 722.97 | AR20.00-P-1010EL |
ALTERNATOR
| Number | Designation | ENGINE 157 | ENGINE 278 | |
|---|---|---|---|---|
| BA15.40-P-1001-01F | Bolt, alternator to timing case | Nm | 20 | 20 |
ALTERNATOR
| Number | Designation | ENGINE 157 | ENGINE 278 | |
|---|---|---|---|---|
| BA15.40-P-1002-01F | Nut, circuit B+ to alternator | Nm | 15 | 15 |
