Retrofit rear-entertainment with two screens - AZ82.60-P-0015EW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212.0/2 without CODE 432 (Left and right dynamic multicontour seat) without CODE 864 (Rear entertainment system)

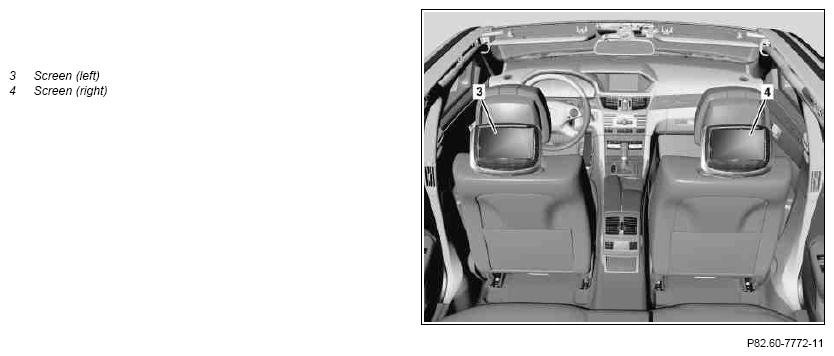

Fig 1: Retrofit Rear-Entertainment With Screens

Courtesy of MERCEDES-BENZ USA

	Remove
1	Loosen center console in rear area
	Remove/install center console		AR68.20-P-2000EW
2	Loosen front seats
	Remove/install front seat		AR91.10-P-1000CW
3.1	Loosen left and right front seat head restraint motor	with code (275) Memory package for electrically adjustable front seats
	Remove/install front seat heat restraint motor	MODEL 212.0/2 with CODE 275 (Electrically adjustable front seats memory package) without CODE 432 (Left and right dynamic multicontour seat) without CODE 864 (Rear entertainment system) Do not completely remove the head restraint, simply loosen it.	AR91.29-P-1432CW
3.2	Move left and right front seat head restraint all the way to the top	Without code (275) Memory package for electrically adjustable front seats
	Install
4	Retrofit cutout for bracket for screens (3, 4)	Make cutout for bracketMODEL 212.0/2
4	Retrofit cutout for bracket for screens (3, 4)	without CODE 432 (Left and right dynamic multicontour seat) without CODE 864 (Rear entertainment system) with two screens	AZ82.60-P-0015-07EW
5	Retrofit rear entertainment wiring harness	With code (275) Memory package (driver seat, steering column, mirrors) Retrofit rear entertainment wiring harness	AZ82.60-P-0015-02EW
5	Retrofit rear entertainment wiring harness	Retrofit rear entertainment wiring harnessWithout code (275) Memory package (driver seat, steering column, mirror) Ensure that the wiring harnesses are not damaged by means of chafing, getting caught in moving parts or crushing. Otherwise the corresponding wiring harness must be replaced.	AZ82.60-P-0015-02EX
6	Retrofit Rear Seat Entertainment system screen bracket
		Retrofit rear entertainment screen bracketMODEL 212.0/2 without CODE 432 (Left and right dynamic multicontour seat) without CODE 864 (Rear entertainment system) with two screens	AZ82.60-P-0015-04EW
		Screw/bolt to rear entertainment unit bracket	*BA82.60-P-1001-01A
7	Retrofit rear entertainment control unit	Retrofit rear entertainment control unit	AZ82.60-P-0015-01EW
8	Retrofit screens (3, 4) MODEL 212.0/2 without CODE 432 (Left and right dynamic multicontour seat) without CODE 864 (Rear entertainment system) with two screens Retrofit rear entertainment screen		AZ82.60-P-0015-03EW
9	Install remaining parts
10	Program rear entertainment infrared channel	Program rear entertainment infrared channel	AZ82.60-P-0015-05GZ
11	Program rear entertainment regional code	Program rear entertainment regional code	AZ82.60-P-0015-06GZ
12	Perform function test	See rear entertainment operating instructions.

REAR ENTERTAINMENT UNIT

Number	Designation		MODEL 164, 166, 204, 211, 212, 218, 219, 221, 251
BA82.60-P-1001-01A	Screw/bolt to rear entertainment unit bracket	Nm	19

PARTS ORDERING NOTE

Part no.	Designation	Quantity
KG 98 (see EPC)	Parts kit for rear entertainment with two screens	1
