Retrofit rear entertainment screen bracket - AZ82.60-P-0015-04EW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 218.3/9 with two screens

MODEL 212.0/2 without CODE 864 (Rear entertainment system) with two screens

Insert silver bracket (15) into opening.
Insert black bracket (16) into opening.
Screw bracket (16) to bracket (15) using screw/bolt (17).
Bracket (16) and bracket (15) are interlocked with the cross strut of the seat by means of the threaded connection. Observe tightening torque.

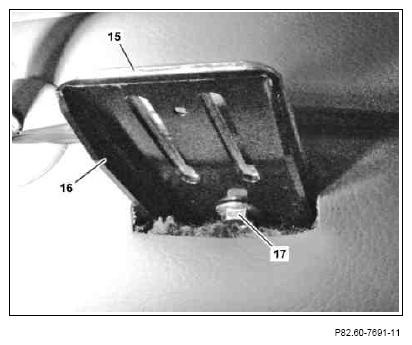

Fig 1: Rear Entertainment Screen Bracket
Courtesy of MERCEDES-BENZ USA
Make cutout for screw/bolt (18) at plastic reinforcement (20) using side cutting pliers.
Tighten bracket with screw/bolt (18) at crossmember of seat.
Use suitable washer and nut from delivery contents. Expose seat cover.

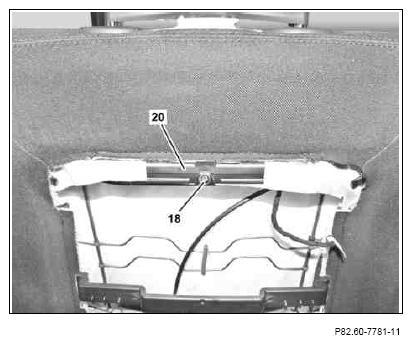

Fig 2: Seat Crossmember Bolt
