Program rear entertainment regional code - AZ82.60-P-0015-06GZ

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 156.9, 164.1/8, 166.0/8, 204.0 (except 204.077), 204.2 (except 204.277), 204.9, 211.0/2/6, 212.0/1/2, 218.3/9, 219.3, 221.0/1, 242, 246, 251.0/1

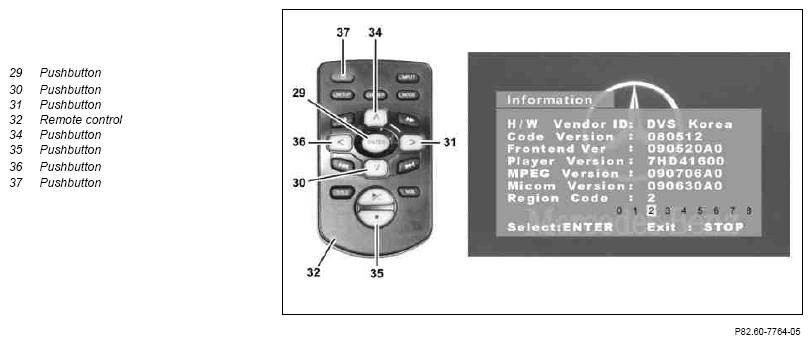

Fig 1: Overview Of Program Rear Entertainment Regional Code (1 Of 2)

Courtesy of MERCEDES-BENZ USA

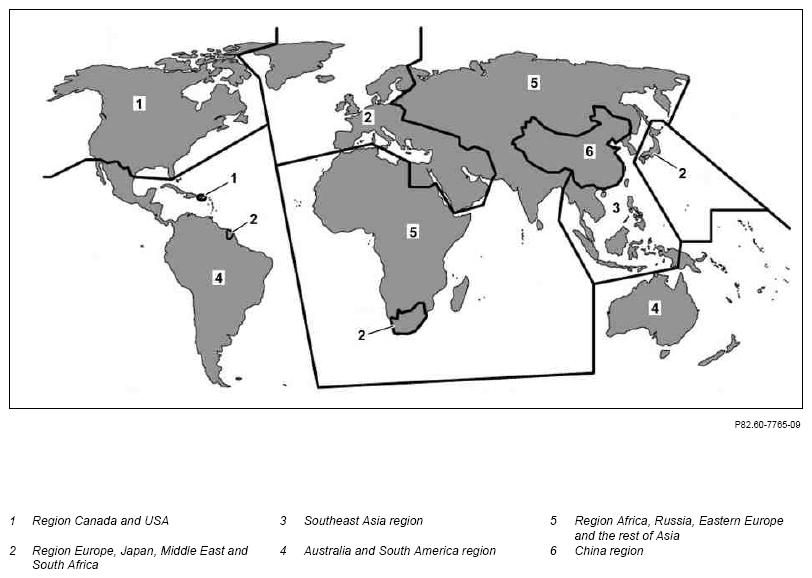

Fig 2: Overview Of Program Rear Entertainment Regional Code (2 Of 2)

Courtesy of MERCEDES-BENZ USA

Both screens are already switched on. No DVD may be inserted. The region code must be programmed on the two screens.

Press following button combination on remote control (32):
- Button (34)
- Button (30)
- Button (34)
- Button (29)
  Button (29) is used to confirm the entry.
Select the corresponding regional code with button (31) or button (36).
Press button (29) to confirm entry.
Press button (35) to exit menu.
Switch off rear entertainment by pressing button (37).
