Retrofit daytime running lights - AZ82.10-P-0020EW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212 (except 212.074/077/274/277) with CODE 621 (Intelligent Light System (left-hand traffic)) with CODE 800 (Model year 2010) with CODE 954 (Avantgarde) without CODE 460 (Additional parts, Canadian vehicles) without CODE 494 (California version) without CODE 835 (South Korea version)

Daytime running lights "straight design"

MODEL 212 (except 212.074/077/274/277) with CODE 622 (Intelligent Light System (right-hand traffic)) with CODE 800 (Model year 2010) with CODE 954 (Avantgarde) without CODE 460 (Additional parts, Canadian vehicles) without CODE 494 (California version) without CODE 835 (South Korea version)

Daytime running lights "straight design"

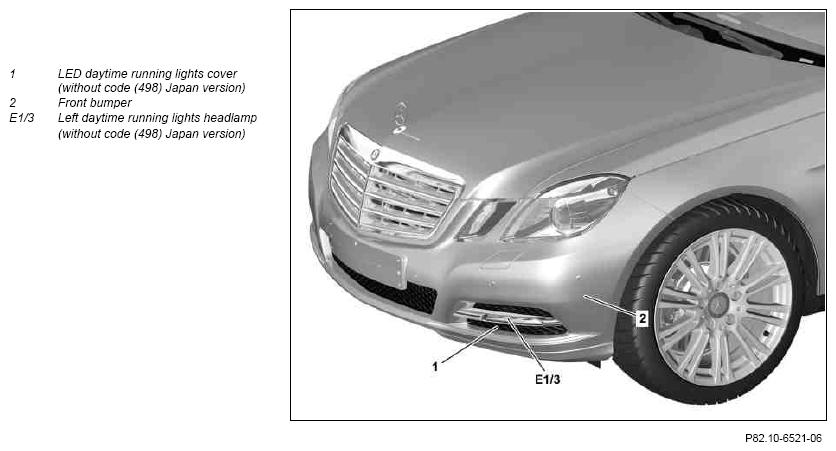

Fig 1: Retrofit Daytime Running Lights Components
G09977671Courtesy of MERCEDES-BENZ USA
REMOVING Remove
1.1 Remove lower engine compartment paneling MODEL 212.0 (except 212.074/077), 212.2 (except 212.274/277) with ENGINE 156, 157, 271, 272, 273, 274, 276, 278, MODEL 212.1 with ENGINE 271, 272, 274, 276
REFER TO TESTING & REPAIR   AR61.20-P-1105EW
1.2 Remove bottom section of soundproofing MODEL 212.0 (except 212.074/077), 212.2 (except 212.274/277) with ENGINE 642, 651
REFER TO TESTING & REPAIR   AR94.30-P-5300EW
2.1 Remove left daytime running lights headlamp (E1/3) and right daytime running lights headlamp In vehicles without code (498) Japan version
REFER TO TESTING & REPAIR MODEL 212.0 (except 212.074/077) up to 4/13/13, 212.1 up to 4/13/13, 212.2 (except 212.274/277) up to 4/13/13
up to model year 2013
with CODE 621 (Intelligent Light System (left-hand traffic))
with CODE 622 (Intelligent Light System (right-hand traffic))
with CODE 800 (Model year 2010)
with CODE 954 (Avantgarde)
without CODE 460 (Additional parts, Canadian vehicles)
without CODE 494 (California version)
without CODE 498 (Japanese version)
without CODE 835 (South Korea version) Daytime running lights "straight design"
IMPORTANT The left daytime running lights headlamp (E1/3) and the right daytime running lights headlamp are no longer required.		 AR82.10-P-2300EW
2.2 Remove left front fog lamp and right front fog lamp On vehicles with code (498) Japan version
IMPORTANT The left front fog lamp and the right front fog lamp are no longer required.
3 Remove LED daytime running lights (1) cover or front fog lamp cover
REFER TO TESTING & REPAIR MODEL 212 (except 212.074/077/274/277) up to model year 2014
IMPORTANT Do not remove front bumper (2).
The LED daytime running lights (1) covers are no longer required.		 AR88.20-P-2050EW
4 Remove front SAM control unit with fuse and relay module and place to one side with electrical lines connected
REFER TO TESTING & REPAIR Only in vehicles with code (498) Japan version AR54.21-P-1260CW
INSTALLING Install
5 Install left and right LED daytime running lights (1) cover
REFER TO TESTING & REPAIR MODEL 212 (except 212.074/077/274/277) up to model year 2014 AR88.20-P-2050EW
6 Retrofit left daytime running lights headlamp (E1/3) and right daytime running lights headlamp In vehicles without code (498) Japan version AZ82.10-P-0020-01EW
On vehicles up to 31.05.10 with code (498) Japan version AZ82.10-P-0020-01EWA
SPECIAL TOOL Wiring harness repair kit Figure
7.1 Bottom sections of soundproofing MODEL 212.0 (except 212.074/077), 212.2 (except 212.274/277) with ENGINE 642, 651
7.2 Install lower engine compartment paneling MODEL 212.0 (except 212.074/077), 212.2 (except 212.274/277) with ENGINE 157, 271, 272, 273, 274, 276, 278, MODEL 212.1 with ENGINE 271, 272, 274, 276
REFER TO TESTING & REPAIR   AR61.20-P-1105EW
8 Reconnect wiring harness on front SAM control unit with fuse and relay module MODEL 212.0 (except 212.074/077) up to 5/31/10, 212.1 up to 5/31/10, 212.2 (except 212.274/277) up to 5/31/10 up to model year 2013
with CODE 498 (Japanese version)
with CODE 621 (Intelligent Light System (left-hand traffic))
with CODE 622 (Intelligent Light System (right-hand traffic))
with CODE 800 (Model year 2010)
with CODE 954 (Avantgarde)
without CODE 460 (Additional parts, Canadian vehicles)
without CODE 494 (California version)
without CODE 835 (South Korea version) Daytime running lights "straight design"		 AZ82.10-P-0020-05EW
9 Install front SAM control unit with fuse and relay module
REFER TO MAINTENANCE MODEL 212.0 (except 212.074/077), 212.1, 212.2 (except 212.274/277)
up to model year 2013
with CODE 498 (Japanese version)
with CODE 621 (Intelligent Light System (left-hand traffic))
with CODE 622 (Intelligent Light System (right-hand traffic))
with CODE 800 (Model year 2010)
with CODE 954 (Avantgarde)
without CODE 460 (Additional parts, Canadian vehicles)
without CODE 494 (California version)
without CODE 835 (South Korea version) Daytime running lights "straight design"		 AR54.21-P-1260CW
10 Enter special equipment in online vehicle data card via vehicle documentation system (VeDoc) MODEL 212.0 (except 212.074/077/092) up to 4/13/13, 212.1 up to 4/13/13, 212.2 (except 212.274/277/292) up to 4/13/13 up to model year 2013
with CODE 498 (Japanese version)
with CODE 621 (Intelligent Light System (left-hand traffic))
with CODE 622 (Intelligent Light System (right-hand traffic))
with CODE 800 (Model year 2010)
with CODE 954 (Avantgarde)
without CODE 460 (Additional parts, Canadian vehicles)
without CODE 494 (California version)
without CODE 835 (South Korea version) Daytime running lights "straight design"
IMPORTANTEnter:  Register daytime running lights by entering the 3-digit code "68o" in the front SAM control unit with fuse and relay module. Ensure here that the third digit is the letter "o" for Oscar.
IMPORTANTDelete:  Delete the 3-digit code "K22".
11 Document retrofitted equipment through VeDoc IMPORTANT Attach "Straight design daytime running lights as per AZ82.10-P-0020EW " note under field organization texts to design group 82.
12 Connect Star Diagnosis and select vehicle via the vehicle identification number (VIN)
13 Carry out variant coding with the Diagnosis Assistance System by means of Software Calibration Number (SCN) Variant coding with XENTRY using the software calibration number (SCN) must be carried out for the following control unit: ↓
Front SAM control unit with fuse and relay module AZ00.01-P-1001-02A
14 Disconnect STAR DIAGNOSIS
15 Carry out daytime running lights function check
Fig 2: Identifying Wiring Harness Repair Kit (220 589 02 99 00)
G09977672Courtesy of MERCEDES-BENZ USA
PARTS ORDERING NOTE

Part no. Designation Quantity
KG 98 (see EPC) Electrical system and function 1
