Retrofit daytime running lights headlamp - AZ82.10-P-0020-01EW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212.0 /1 /2 (except 212.074 /077 /274 /277) up to 31.5.10 except CODE (498) Japan version

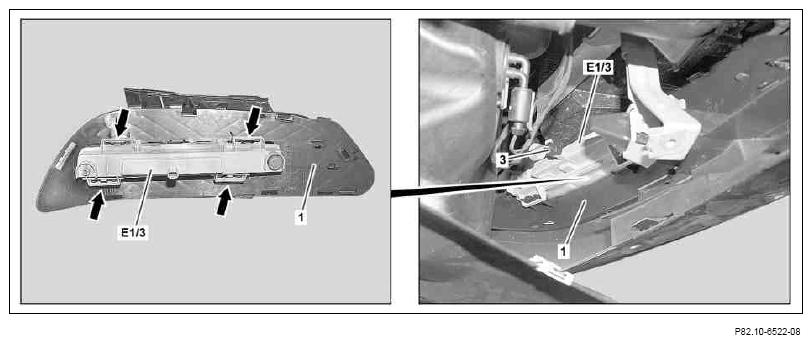

- Clip left daytime running lights headlamp (E1/3) and right daytime running lights headlamp into brackets (arrows) of LED daytime running lights (1) covers.
- Connect black 2-pin coupling (3) of removed left daytime running lights headlamp (E1/3) and right daytime running lights headlamp to new left daytime running lights headlamp (E1/3) and right daytime running lights headlamp.
